Trim-Seal Product Builder

Customize Your Product:

•
•
•

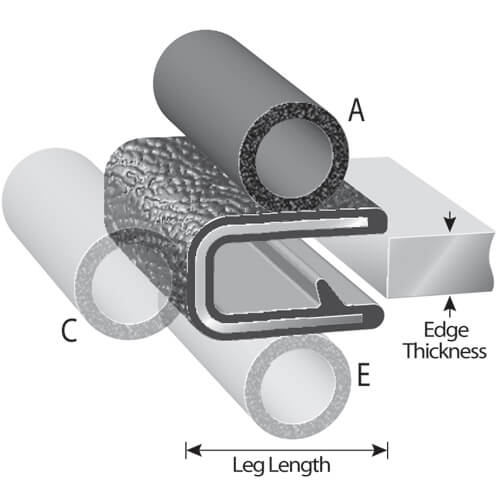

Trim-Seal is a flexible PVC Trim with a sponge rubber bulb attached to provide a secure seal for a variety of applications.

Bulb Size (Part Number) *

Select... 5M - .200 inch bulb size 6M - .236 inch bulb size 7M - .276 inch bulb size 3 - .375 inch bulb size 4 - .437 inch bulb size 6 - .625 inch bulb size 7 - .750 inch bulb size 100 - 1.00 inch bulb size

Price: Build Your Part QTY

Description	Trim-Seal is a flexible PVC trim with a EPDM sponge rubber tubing attached to provide a secure seal for a variety of applications.
Resistance to	Ozone – Excellent Water Absorption - Excellent Sunlight Aging - Excellent Low Temperature - Good
General Temperature Rating	-20ºF to +158ºF
Outer Coating Material	Poly Vinyl Chloride (PVC) 85 Durometer Shore A
Internal Metal Clip Materials	Aluminum - 3004 H38P Steel - CRS SAE 1010, Rockwell B ,75-85 Durometer
Flammability & Code Compliance	FMVSS 302 Horizontal Burn FAA/FAR 25.853 UL50
Bulb Material	Custom formulated EPDM sponge rubber bulb
Trim-Seal Spec. Sheet (Right Click and Select Save As)

Part Number	Top Bend Radius	Inside Bend Radius	Outside Bend Radius
6100X1/8A	4.50"	3.00"	3.00"
6100X1/8C	3.00"	NA	NA
6100X1/8E	4.50"	3.00"	3.00"

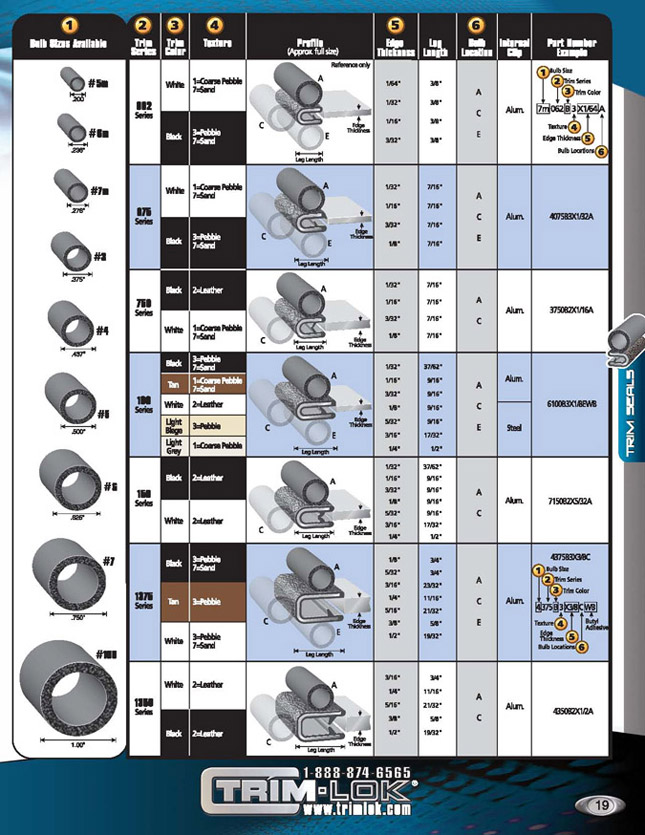

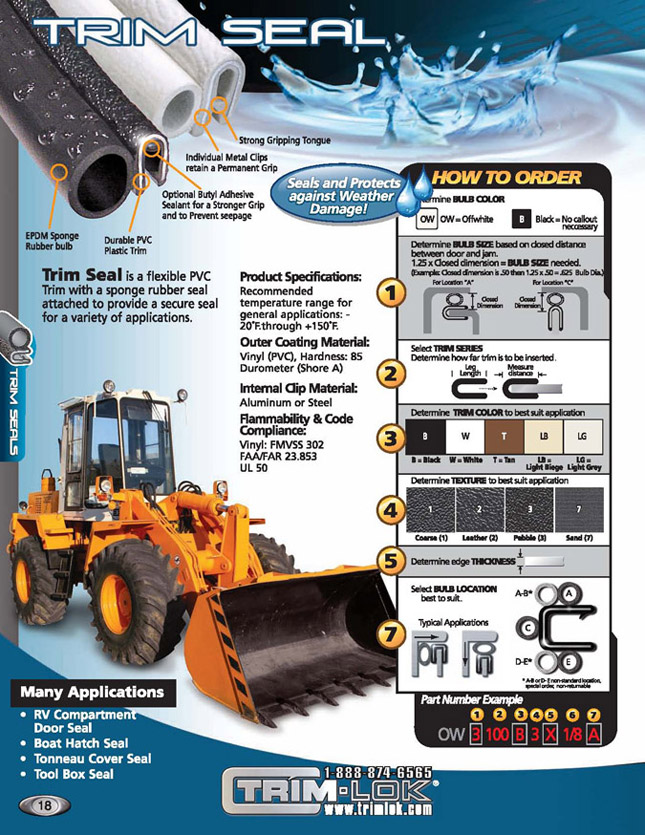

Catalog 600 - (Right Click and select save as to download a free copy of our Catalog 600)
