Fire Retardant Edge Trims

Customize Your Product:

Fire Retartant Edge Trim is a flexible trim with metal clips to provide a permanant grip.  It is manufactured out of a Thermoplastic Vulcanizate (TPV) material formulated to pass the National Fire Protection Ageny (NFPA) standards.  This material also complies with the UL 94HB flame requirements most commonly needed in elctrical enclosures.

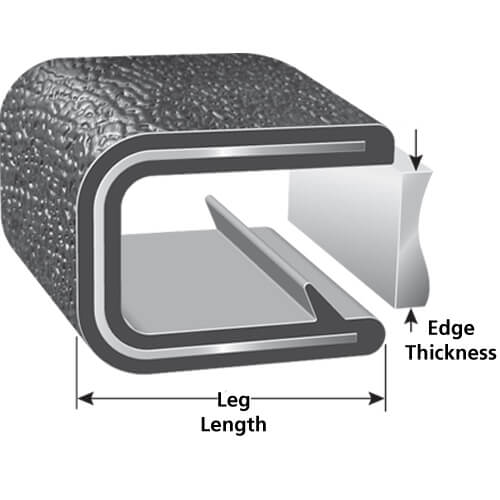

Edge Thickness () *

Select... 1/8 inch edge thickness 5/32 inch edge thickness 3/16 inch edge thickness 1/4 inch edge thickness

Price: Build Your Part QTY

Find an International Distributor

Description	Edge Trim is flexible TPFR trim with individual internal metal clips and gripping tongue to provide a stronger grip.
Resistance to	Ozone – Excellent Water Absorption - Excellent Sunlight Aging - Excellent Low Temperature - Good
General Temperature Rating	-20ºF to +158ºF
Outer Coating Material	TPV
Internal Metal Clip Materials	Aluminum - 3004 H38P Steel - CRS SAE 1010, Rockwell B ,75-85 Durometer
Flammability & Code Compliance	FMVSS 302 Horizontal Burn FAA/FAR 25.853 UL50 UL844 UL 94HB

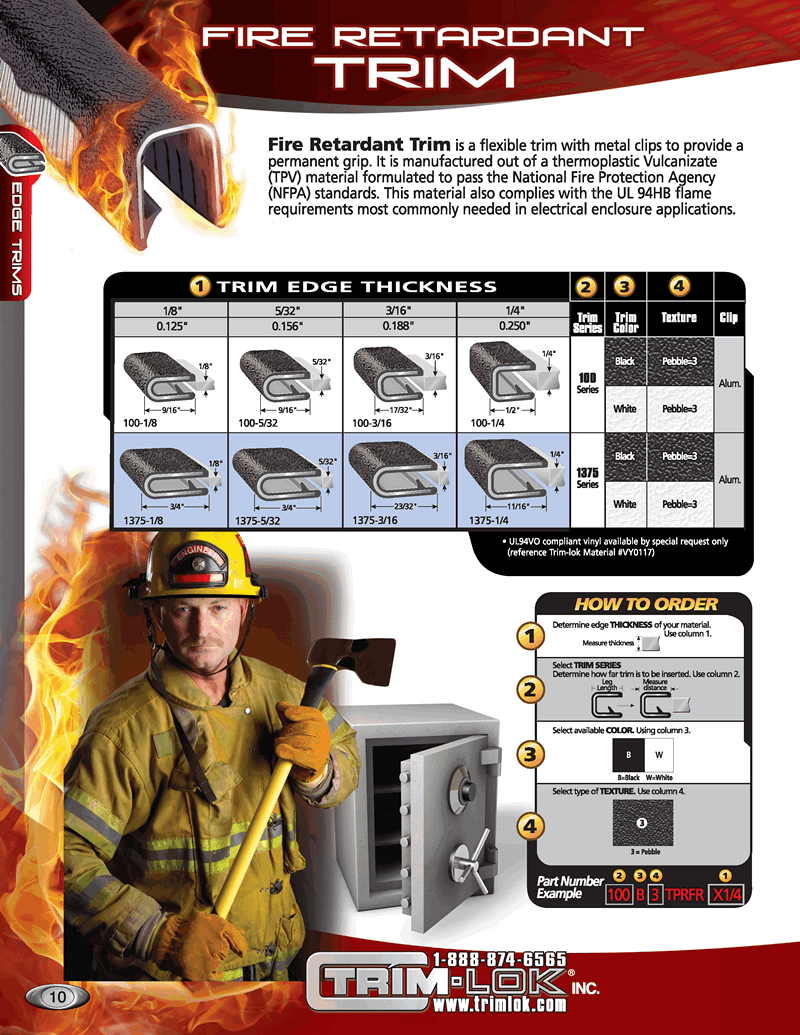

Catalog 650: Fire Retardant Trim Products - (Right Click and select save as to download a free catalog of our Fire Retardant Trim Products)
