Rubber edge trim is a highly flexible trim made of dense neoprene rubber for edging applications with excellent wear and ozone resistance that fits most tight radius applications.
Edge Thickness (Options) *

*Price breaks, where applicable, will be reflected in cart*

Price: Build Your Part
Add To CartRequest A Sample

For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Find an International Distributor

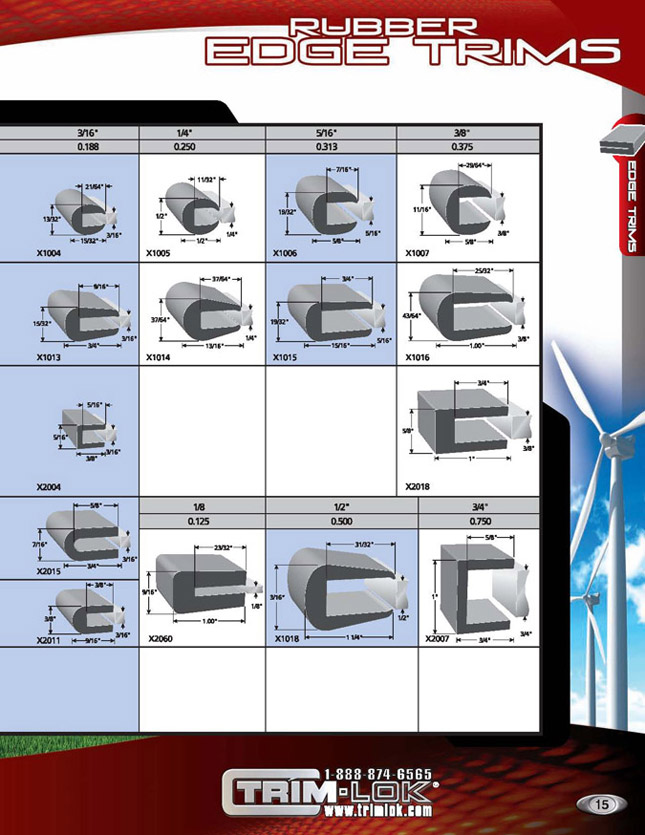

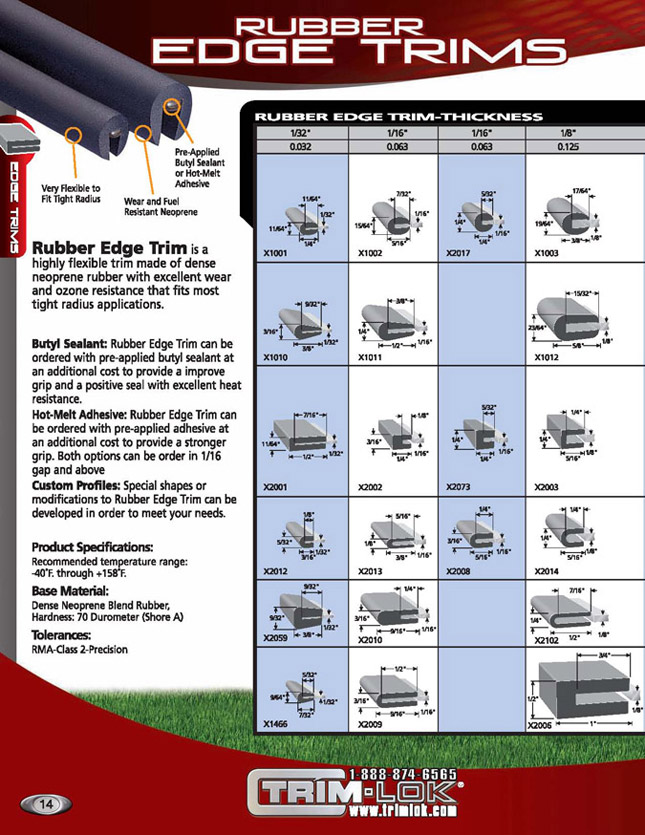

Catalog 650: Rubber Edge Trim Products - (Right Click and select save as to download a free catalog of our Rubber Edge Trim Products)





Description Rubber Edge Trim is a highly flexible trim made of either EPDM or dense neoprene rubber, and can be used virtually anywhere a decorative or protective edge is necessary. While both materials provide excellent wear and ozone resistance and fit most tight radius applications, neoprene resists oil and fuel better than EPDM. TrimLok’s Rubber Edge Trim is manufactured to grip on difficult materials, compound curves, and other problematic surfaces.

All Rubber Edge Trim manufactured by Trim-Lok is quick and easy to install – simply push the trim down and it will provide a strong grip on any exposed edge. Although adhesive isn’t required, we recommend using a hot melt adhesive or butyl adhesive sealant to keep the product in place. From parking lot mirrors and scoreboards to dry erase boards and motorcycle helmets, our Rubber Edge Trim can be used for a variety of purposes.

Our Rubber Edge Trim come in various sizes and styles, and are manufactured in the United States using high quality materials guaranteed to meet your expectations. For more information about the strong, resilient gripping power of TrimLok’s Rubber Edge Trim, request a sample or find a qualified sales rep near you.
Resistance to
  • Ozone – Good
  • Water Absorption - Excellent
  • Sunlight Aging - Good
  • Low Temperature – Excellent
  • Compression Set - Good
General Temp. Rating -40°F to +212°F
 Service Temp. Range
-20°F to +158°F
Base Material Dense Neoprene Rubber Blend, 70 Shore A Durometer
Or
EPDM Dense Rubber, 70 Shore A Durometer
Tolerances RMA-Class 2-Precision
Custom Options
(Call for Pricing, Availabilty and to Order)

  • Special Shapes or modifications to Rubber Edge Trim can be developed in order to meet your needs
  • Butyl Sealant - Rubber Edge Trim can be ordered with pre-applied butyl sealant at an additional cost to provide an improved grip and a positive seal with excellent heat reistance (available pre-applied to EPDM Dense Rubber and Dense Neoprene Rubber Blend).
  • Hot Melt Adhesive - Rubber Edge Trim can be ordered with pre-applied adhesive at an additional cost to provide a stronger grip (available pre-applied to Dense Neoprene Rubber Blend).
Code Compliance
Rubber Edge Trim Spec. Sheet (To save a copy, open file, right click and select Save As)
Rubber Edge Trim Minimum Bend Radius

*Radius information not presently available is denoted with "N/A"


PART
NUMBER
INSIDE
RADIUS
OUTSIDE
RADIUS
TOP BEND
RADIUS
DESCRIPTION
X1001 0.5" 1.0" N/A RUBBER EDGE TRIM, 1/32" GAP
X1002 0.5" 0.5" N/A RUBBER EDGE TRIM, 1/16" GAP
X1003 0.5" 1.0" N/A RUBBER EDGE TRIM, 1/8" GAP
X1004 1.0" 2.0" N/A RUBBER EDGE TRIM, 3/16" GAP
X1005 1.0" 2.0" N/A RUBBER EDGE TRIM, 1/4" GAP
X1006 1.0" 2.0" N/A RUBBER EDGE TRIM, 5/16" GAP
X1007 3.0" N/A N/A RUBBER EDGE TRIM, 3/8" GAP
X1008 N/A N/A N/A RUBBER EDGE TRIM, 7/16" GAP
X1009 N/A N/A N/A RUBBER EDGE TRIM, 1/2" GAP
X1010 0.5" 2.0" N/A RUBBER EDGE TRIM, 1/32" GAP
X1011 1.5" 2.0" N/A RUBBER EDGE TRIM, 1/16" GAP
X1012 2.0" N/A N/A RUBBER EDGE TRIM, 1/8" GAP
X1013 2.0" N/A N/A RUBBER EDGE TRIM, 3/16" GAP
X1014 3.0" N/A N/A RUBBER EDGE TRIM, 1/4" GAP
X1015 N/A N/A N/A RUBBER EDGE TRIM, 5/16" GAP
X1016 2.5" N/A N/A RUBBER EDGE TRIM, 3/8" GAP
X1018 N/A N/A N/A RUBBER EDGE TRIM, 1/2" GAP
X2001 2.5 3.5" 1.5" RUBBER EDGE TRIM, 1/32" GAP
X2002 0.5" 1.0" N/A RUBBER EDGE TRIM, 1/16" GAP
X2003 1.0" 2.0" N/A RUBBER EDGE TRIM, 1/8" GAP
X2004 2.0" N/A N/A RUBBER EDGE TRIM, 3/16" GAP
X2005 N/A N/A N/A RUBBER EDGE TRIM, 1/4" GAP
X2006 N/A N/A N/A RUBBER EDGE TRIM, 1/8" GAP
X2007 N/A N/A N/A RUBBER EDGE TRIM, 3/4" GAP
X2008 1.0" 1.0" N/A RUBBER EDGE TRIM, 1/16" GAP
X2009 3.5" N/A 1.0" RUBBER EDGE TRIM, 1/16" GAP
X2010 2.0" N/A N/A RUBBER EDGE TRIM, 1/16" GAP
X2011 2.0" 2.0" N/A RUBBER EDGE TRIM, 3/16" GAP
X2012 0.5" 1/2" N/A RUBBER EDGE TRIM, 1/32" GAP
X2013 2.0" 3.5" 1.0" RUBBER EDGE TRIM, 1/16" GAP
X2014 N/A N/A 1.0" RUBBER EDGE TRIM, 1/8" GAP
X2015 N/A N/A N/A RUBBER EDGE TRIM, 3/16" GAP
X2017 0.5" 0.5" 0.5" RUBBER EDGE TRIM, 1/16" GAP
X2018 N/A N/A N/A RUBBER EDGE TRIM, 3/8" GAP
X2059 1.5" 3.0" 1.0" RUBBER EDGE TRIM, 1/32" GAP
X2060 N/A N/A N/A RUBBER EDGE TRIM, 1/8" GAP
X2073 1.0" 1.5" .50" RUBBER EDGE TRIM, 1/8" GAP
