Size Ranged Edge Trim

Customize Your Product:

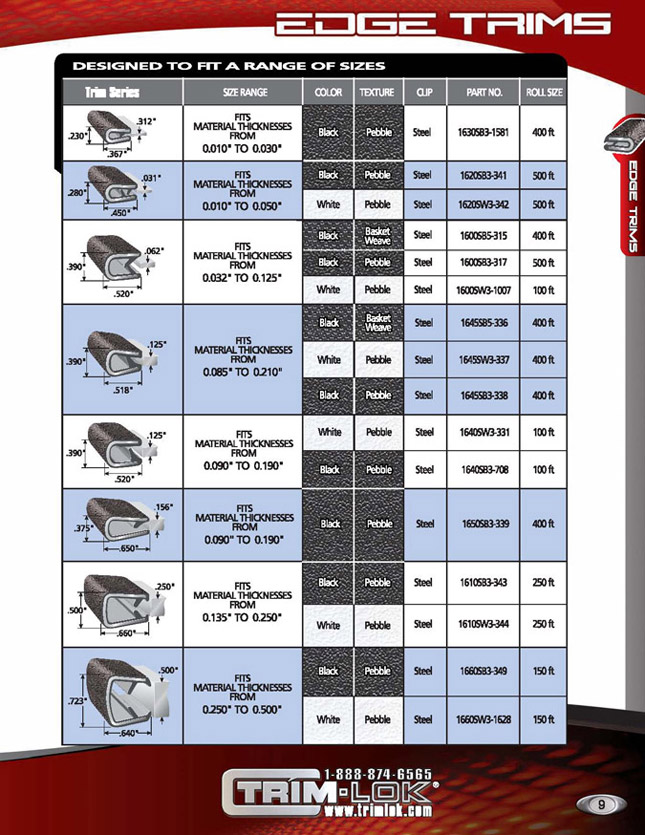

Size Ranged Edge Trims are flexible PVC trims with steel clips and gripping tongues.  They are made to fit a range of edges rather than one size of edge.

Edge Thickness *

Select... .010 inch to .030 inch edge thickness .010 inch to .050 inch edge thickness .032 inch to .125 inch edge thickness .085 inch to .210 inch edge thickness .090 inch to .190 inch edge thickness .135 inch to .250 inch edge thickness .250 inch to .500 inch edge thickness

Price: Build Your Part QTY

Find an International Distributor

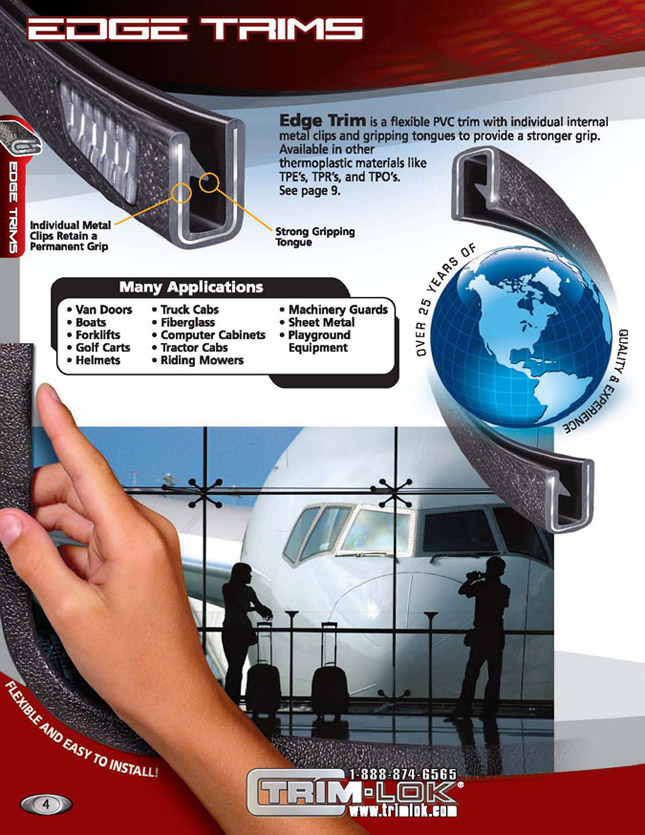

Description	Edge Trim is flexible Poly Vinyl Chloride (PVC) trim with individual internal metal clips and gripping tongue to provide a stronger grip.
Resistance to	Ozone – Excellent Water Absorption - Excellent Sunlight Aging - Excellent Low Temperature - Good
General Temperature Rating	-20ºF to +158ºF
Outer Coating Material	Poly Vinyl Chloride (PVC) 85 Durometer Shore A
Internal Metal Clip Materials	Steel - CRS SAE 1010, Rockwell B ,75-85 Durometer
Flammability & Code Compliance	FMVSS 302 Horizontal Burn FAA/FAR 25.853 UL50 UL844
Edge Trim Spec. Sheet (Right Click and Select Save As)

Catalog 600 - (Right Click and select save as to download a free copy of our Catalog 600)
