2123 Series Rubber Seal

Customize Your Product:

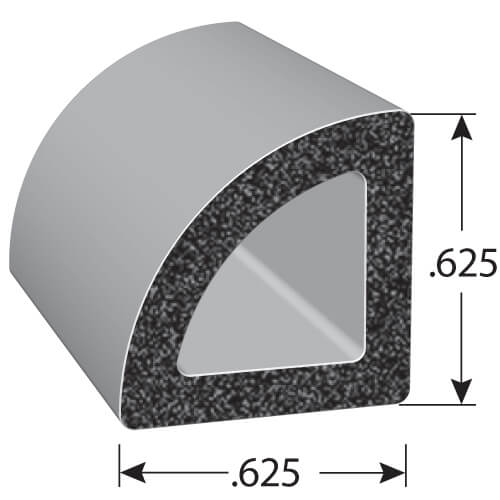

Triangle shaped EPDM Sponge Rubber Seal, with a height of .625" and a width of .625".
Tape Options (2123) *
Price: Build Your Part
3M™ BONDED TAPE SYSTEM
The ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and air tight seal between rubber and substrate. Highest peel and shear resistance, can be used under high loads of stress and force. Has low intial tack for easy re-postioning during installation and needs 72 hours of cure time to come to full bond strength. Good heat performance -20F to +158F
STANDARD PRESSURE SENSITIVE ADHESIVE
This acrylic based adhesive is best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance -20F to +158F.
Description Rubber Seals come in a variety of specially designed shapes made
from custom formulated EPDM sponge rubber compound.
Resistance to
  • Ozone – Excellent
  • Water Absorption - Excellent
  • Sunlight Aging - Excellent
  • Low Temperature – Excellent
  • Compression Set - Good
General Temp. Rating -20 Degrees to +158 Degrees
Compresion Rating and Density Recommended 25% compression for the maximum performance. It
has density of 21 to 23 lbs./pcf
Flammability and Code Compliance FMVSS 302 (Right Click and Select Save As)
UL50 (Right Click and Select Save As)
Adhesive Options
  • "BT" Pressure Sensitive Adhesive This 3M Acrylic Automotive grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and airtight seal
    between rubber and substrate. Highest peel and shear resistance can be used under high loads of stress and force. Has low initial tack for easy re-positioning during installation and needs 72 hours of
    cure time to come to full bond strength. Good heat performance -20F to +158F.
  • "HT" Pressure Sensitive Adhesive This acrylic based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance - 20F to +158F. Please note during application ambient temperature must be above +60F.
Rubber Seal Spec. Sheet (Right Click and Select Save As)

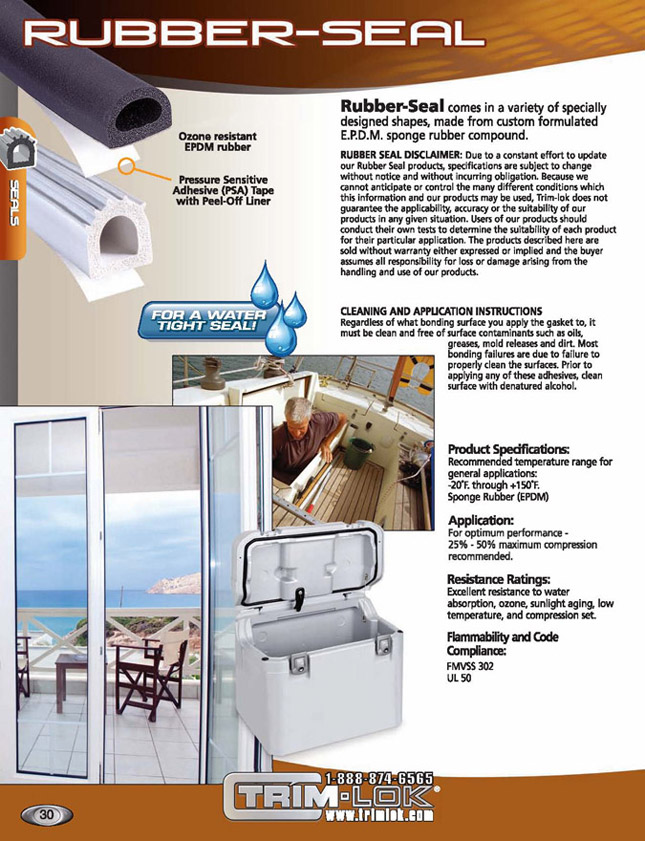

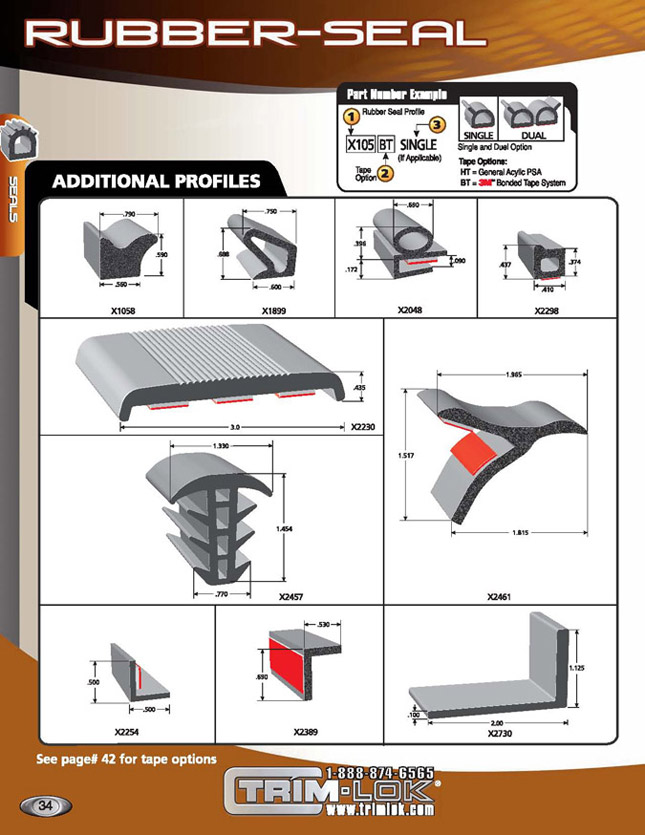

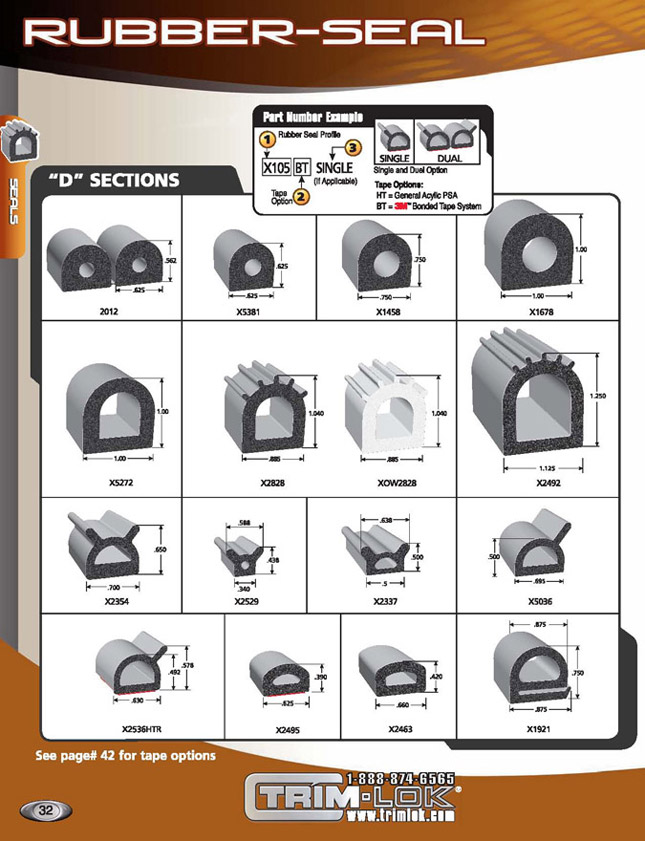

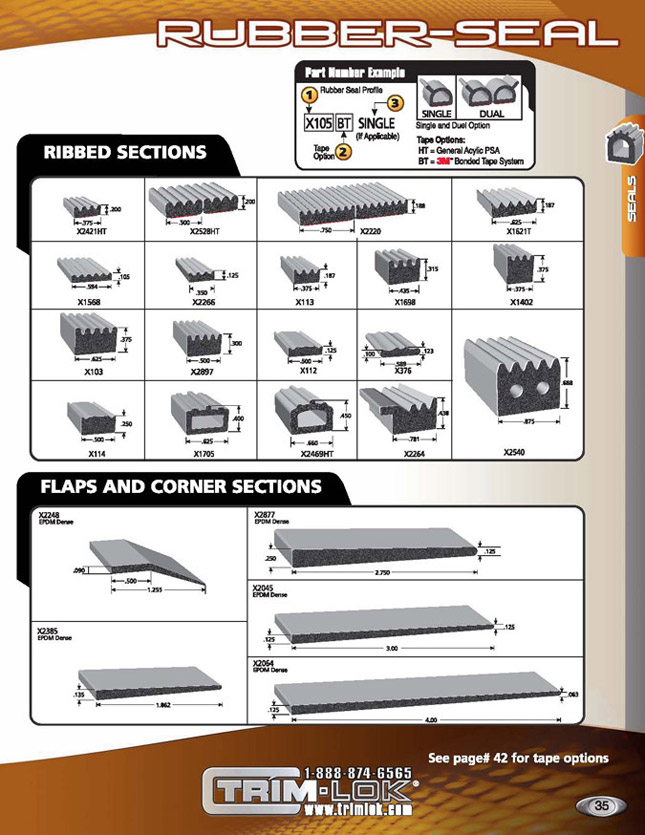

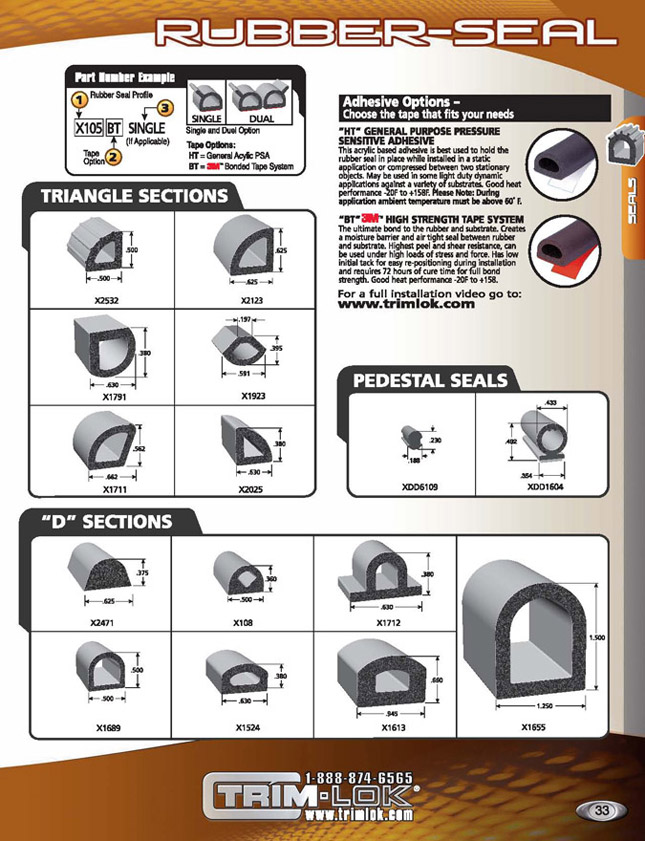

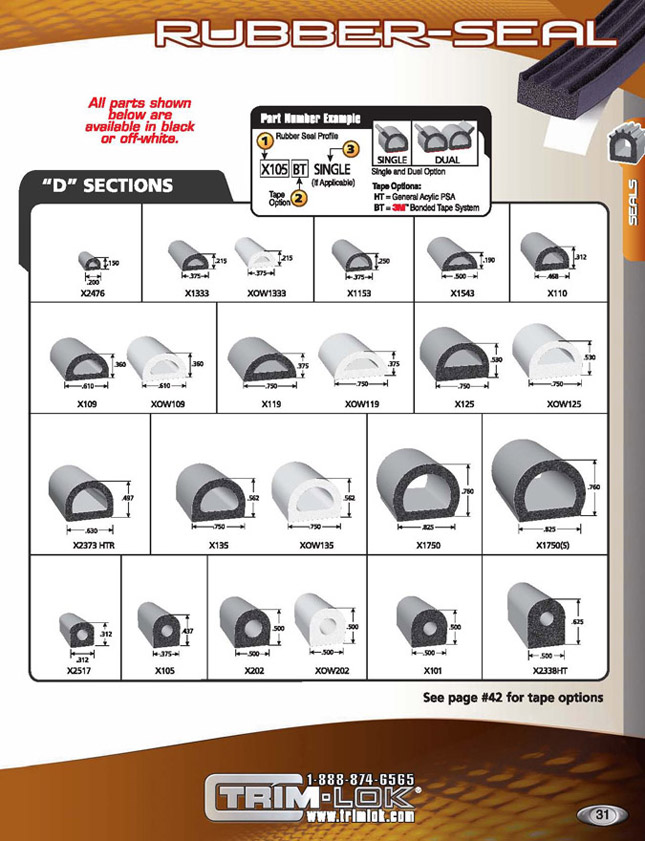

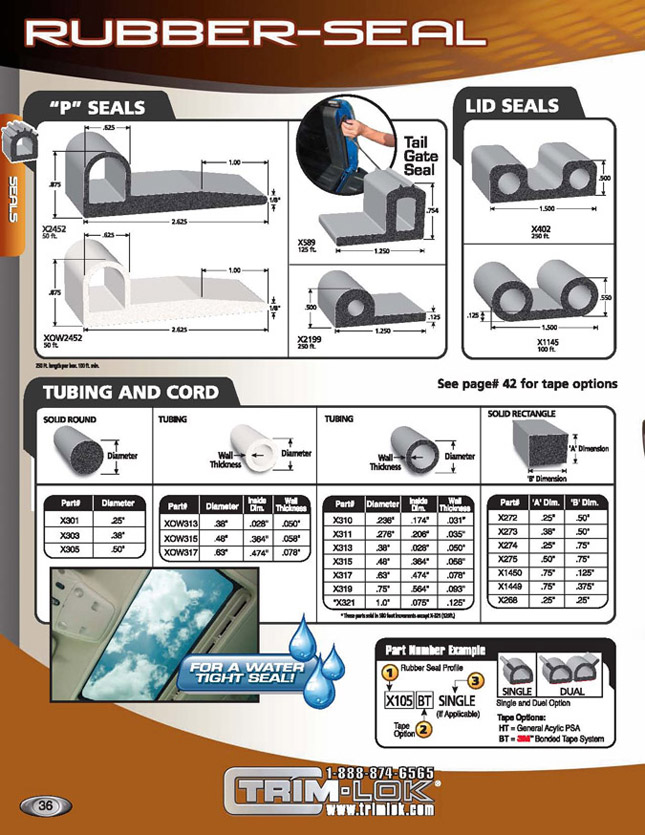

Catalog 600 - (Right Click and select save as to download a free copy of our catalog 600)
