LK1488 (LK1488)

Customize Your Product:

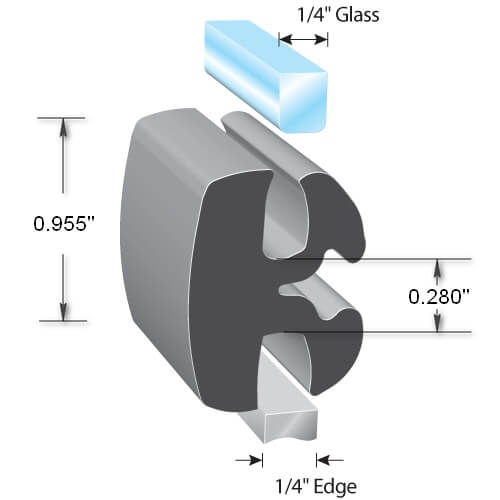

Locking Gasket is a rubber extrusion designed to lock in the installation of stationary windows or windshields.  Locking Gaskets provide a secure seal between a metal or fiberglass body panel and a glass or plexiglass window.


LK1488 *
Optional Customer Part Number
  • Buy 10 or more and pay $100.20 each (save $11.90 each)
  • Buy 50 or more and pay $83.90 each (save $28.20 each)
  • Buy 100 or more and pay $72.90 each (save $39.20 each)
  • Buy 250 or more and pay $67.90 each (save $44.20 each)
Price: $112.10
Description Locking Gasket is a rubber extrusion designed to lock in the installation of stationary windows or windshields. Locking gaskets provide a secure
seal between a metal or fiberglass body panel and a glass or plexiglass
window. Available in one piece and two piece styles with a lock strip, and are highly resistant to numerous environmental conditions.
Resistance to Ozone – Excellent
Water Absorption – Excellent
Sunlight Aging – Excellent
Low Temperature – Excellent
General Temperature Rating -30 Degrees to +158 Degrees
Material G.P 70 Durometer EPDM, Black, dense EPDM rubber to meet ASTM
D2000 M2BA710 C12, EA14, F17, Z1, Z2, Z3; Z1= Comp. Set 22 hrs. @ 100 C, 30% max., Z2= Non-blooming, Z3= 73 +/- 3 (uncured) shore A.
Must be capable to meet EPDM per SAE J200BC715 C12 C 20.
Hardness 70+/- 3
Elongation 200 (250 according to D2000)

Tensile

1450 PSI min.
Catalog 650 - Right click and choose save as, to save a copy of our most recent Catalog 650!
Part # Glass Panel Thickness Body Panel Thickness Min Reccomended Clearance Between Glass & Edge Overall Height Min Reccomended Radius of Panel Opening

Weight per Foot

LK1522 0.1875" - .250" 0.035" - 0.067" 0.3125" 1.07" 2.5" 0.275 lbs.
LK1663 0.1875" - .250" 0.09" - 0.14" 0.25" 0.9" 1.5" 0.196 lbs.
LK987 0.1875" - .250" 0.09" - 0.14" 0.3125" 1.07" 2.5" 0.246 lbs.
LK1536 0.1875" - .250" 0.1875" - 0.25" 0.406" 1.09" 3.5" 0.255 lbs.
LK1615 0.1875" - .250" 0.06" - 0.09" 0.3125" 0.906" 2.5" 0.275 lbs.
LK1621 0.1875" - .250" 0.046" - 0.075" 0.125" 0.937" 2.0" 0.260 lbs.
LK1660 0.1875" - .250" 0.075" - 0.140" 0.145" 1.00" 2.0" 0.293 lbs.
Catalog 650 - (Right Click and select save as to download a free copy of our Catalog 650)
