2897 Series Rubber Seal

Home  »  Rubber Extrusion and Rubber Seals  »  EPDM Rubber Seals  »  Ribbed & Square Profiles  »  2897 Series Rubber Seal

Customize Your Product:

2897 Series Ribbed Rubber Seal

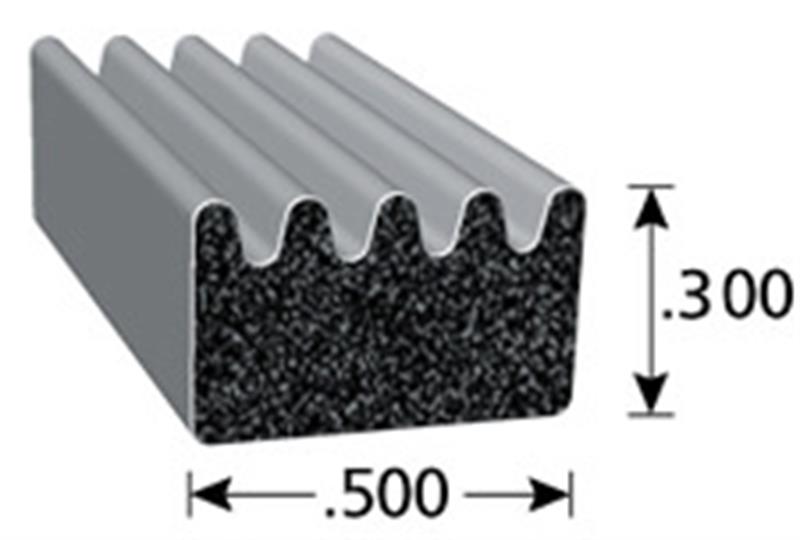

Ribbed rubber seal made with EPDM sponge rubber, measuring .300" (h) and .500" (w).

Use this EPDM ribbed-profile self-stick weather seal to waterproof or soundproof automotive doors, protect boat hatches, seal windows, and more. Choose from two adhesive tape options:

HT – Standard PSA

BT – 3M™ Bonded Tape System

To learn more about our tape definitions, explore the tab below. Visit our Design Guide or for help selecting the right adhesive.

 UL requirements logo for ribbed rubber seals

UL Recognized Component




Tape Options *

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: Build Your Part for Pricing
3M™ BONDED TAPE SYSTEM
The BT option for your self-adhesive rubber seal provides the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and air-tight seal. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance between -20°F to 158°F

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

Logo for BT tape for rubber seals
STANDARD PRESSURE-SENSITIVE ADHESIVE
The HT option for your ribbed rubber seal is an acrylic-based adhesive. It works best when used to hold the ribbed seal in place while installing in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F.
Logo for HT tape for rubber seals
Description

The Trim-Lok Series 2897 Ribbed Rubber Seal is custom formulated from EPDM sponge rubber compound to help you get optimal and long-term use out of your seal—whatever your desired application.

Custom order your .300” x .500” square rubber seal with HT standard PSA tape or BT 3M® tape to ensure a strong adherence to vehicle doors, boat hatches, furniture, and many other possible uses.

Both our BT and HT tape options are available in black. Choose from a dual or single roll type from the drop-down box above.

Make sure you have the trims and seals you need, when you need them. We offer our ribbed rubber seals at the lowest prices on the market and are available to talk through any questions you may have about how to apply your sponge seals to applications across a variety of industries, from automotive and marine to manufacturing and more.

Resistance to
  • Ozone – Excellent
  • Water Absorption - Excellent
  • Sunlight Aging - Excellent
  • Low Temperature – Excellent
  • Compression Set - Good
General Temp. Rating -20°F to 158°F
Compression Rating Recommended 25% compression for maximum performance
Flammability and Code Compliance Download the PDF: FMVSS 302
Download the PDF: UL50
UL requirements logo for ribbed rubber seals This (component or material) is recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options
  • "BT" Pressure-Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
  • "HT" Pressure-Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from -20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
View the Rubber Seal Spec Sheet

Part Number Top Bend Radius Inside Bend Radius Outside Bend Radius
X2897HT 3.00" 2.00" 2.00"

Find out how to install our EPDM sponge rubber seal by downloading our installation instruction PDF. Watch the video now to see a demonstration.
