Adhesive Fender Flare (DD6234BT) (DD6234BT)

Home  »  Flexible Plastic Edge Trims & Plastic Extrusions  »  Plastic Trims & Edge Guards  »  Adhesive Fender Flare (DD6234BT)

Customize Your Product:

About This Peel-and-Stick Adhesive Fender Flare

Trim-Lok’s Peel-and-Stick Fender Flare is designed to install quickly and easily without any need for drilling or bolting.

Made of EPDM dense rubber, this stick-on fender flare utilizes our push-on edge trim and 3M automotive-grade tape for a permanent installation.

Lab testing shows that over 30 pounds of force per inch is needed to pull it off! Contact a sales rep for more information.


Patent # 10,668,955

Color Options *
Length Options
Customer Part Number (Optional)
  • Buy 10 or more and pay $367.43 each (save $56.98 each)
  • Buy 50 or more and pay $332.57 each (save $91.84 each)

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: $424.41

Part Number: DD6234BT

Why Choose Stick-On Fender Flares?

We’ve designed our rubber fender flares to require no drilling or bolts—making installation quick and easy every time. A variety of industries leverage peel-and-stick fender flares, from service and utility trucks to cargo trailers, buses, shuttles and more. No matter your industry, Trim-Lok’s adhesive fender flares offer the right protection and grip for your application.

BENEFITS OF ADHESIVE FENDER FLARES

  • • Our signature push-on edge trim with internal aluminum wire carrier and gripping tongues provide an expert and permanent grip
  • • 3M automotive-grade bonded tape system provides permanent adhesion
  • • Lab testing shows that over 30 pounds of force per inch is needed to pull off Trim-Lok Peel-and-Stick Fender Flare
  • • Push-On Adhesive Fender Flare eliminates the risk of rust or corrosion that can be caused from drilling and the use of nuts and bolts.

RECOMMENDED BEND RADIUS

For optimum performance, we recommend installing Trim-Lok Fender Flare on radiuses of 17" or greater. Applications with smaller radiuses may experience some waviness.

CLAMPING RANGE

Our push-on edge trim has a clamping range of .090" to .157".

MATERIAL

Adhesive fender flares are made of co-extruded EPDM dense rubber.

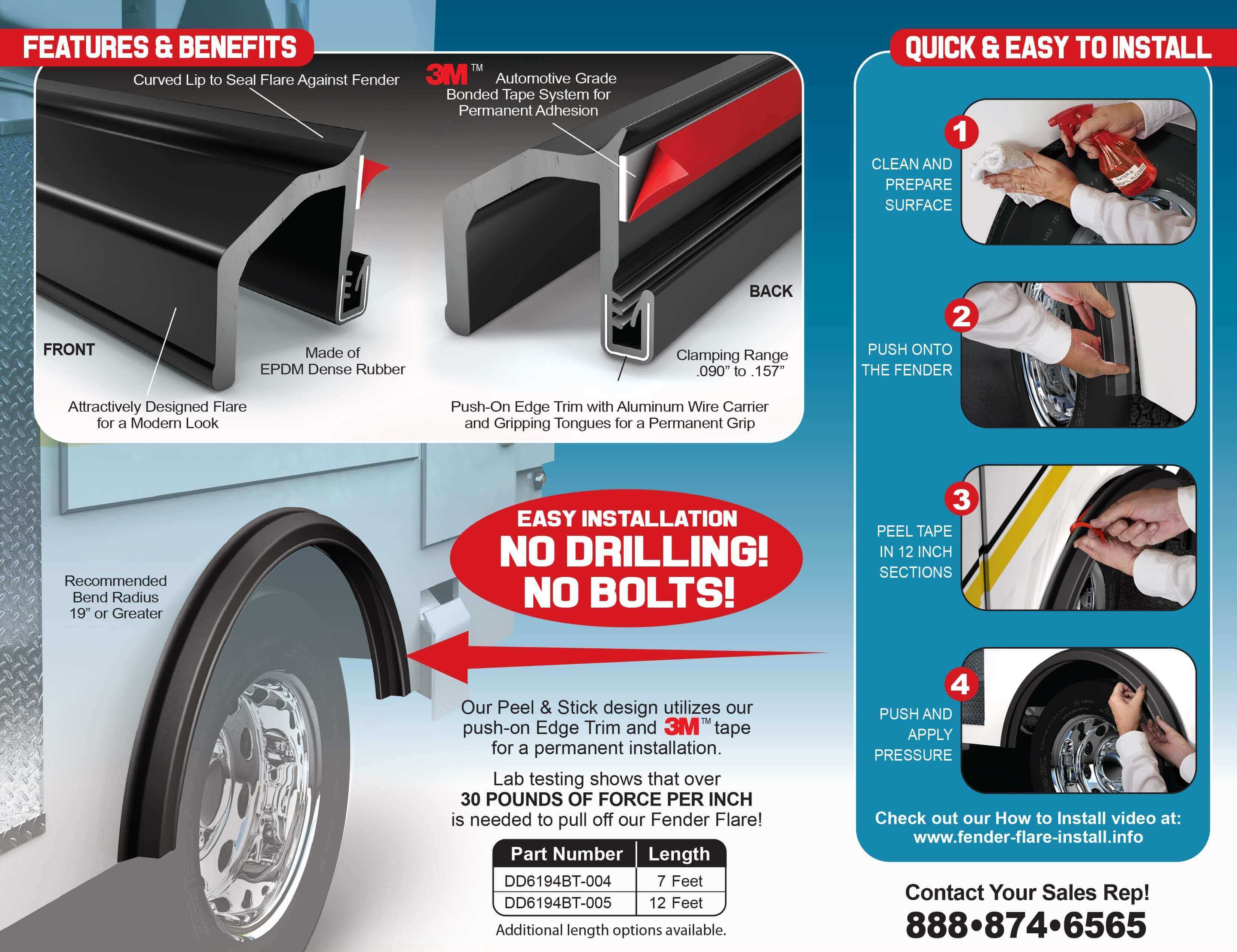

  Download Fender Flare Brochure or View Brochure Below


Peel and Stick Fender Flare catalog page 1Peel and Stick Fender Flare catalog page 2

Learn How to Install Fender Flare Trim

Watch the video to see a demonstration and learn how to install stick-on fender flare trim.



Peel-and-Stick Fender Flare Installation Instructions

Important: Read Before Installation

It is recommended to install adhesive fender flare at an ambient temperature for maximum adherence.  only Fender flare requires a 72-hour wetting-out period to come to full adhesion strength. Do not expose application site to any extreme cold or heat during that time.

Cleaning and Surface Preparation

It is critical to clean and prepare the application surface properly to remove all contaminates, including dirt or oil. Trim-Lok recommends using a cleaning solution comprised of one part isopropyl alcohol and one part water, a clean rag and the application of an adhesive promoter.

  • Step 1: Spray the cleaning solution and wipe with a clean rag. DO NOT use a dirty rag.
  • Step 2: Measure 1 inch from the rim of the substrate. Wear protective gloves and apply adhesive promoter. Allow it to dry thoroughly.
  • Step 3: Measure the substrate’s radial length. If needed, cut the fender flare trim. Allow extra material on each end. To cut through the fender flare, use a pair of wire cutters or straight edge clippers.
  • Step 4: Apply the stick-on fender flare to the substrate. The edge trim should easily push into place. DO NOT remove the peel-off liner. Once the fender flare has been pushed on, use your hand, a rubber mallet or a pneumatic hammer to tap the edge trim to ensure the fender flare is completely pushed on.
  • Step 5: Remove the tape liner in small sections. Use your hands to apply pressure where the tape adheres to the substrate. Repeat until the entire liner has been removed. Any buckles in the peel-and-stick fender flare can easily be manipulated into share with your hands.

Download Peel-and-Stick Fender Flare Instructions
