Description |

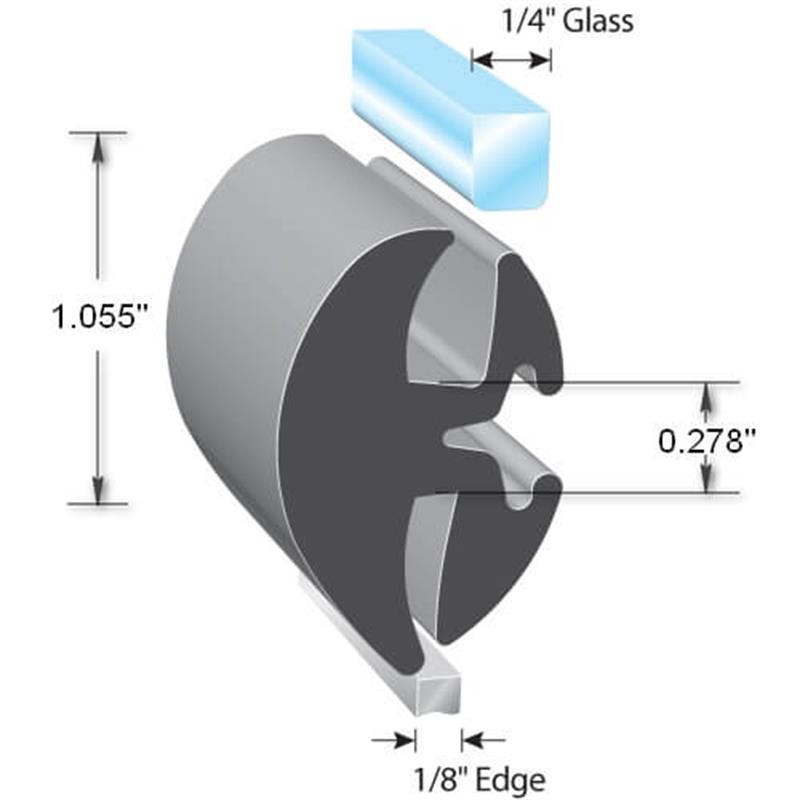

Trim-Lok’s Locking Gasket is a two-piece rubber extrusion designed to lock in the installation of stationary windows or windshields. Locking window gaskets provide a secure seal between a metal or fiberglass body panel and a glass or plexiglass window.
Rubber window gaskets are available in one-piece and two-piece styles with a lock strip. They are highly resistant to numerous environmental conditions, including ozone, sunlight, severe weather conditions, oxygen, acids and aging.
For more than 50 years, OEMs across many industries—from automotive to manufacturing and more—have relied on Trim-Lok for high-quality, durable two-piece locking gaskets, trims and seals that meet or exceed their application expectations. |
Resistance
to |
Ozone – Excellent
Water Absorption –
Excellent
Sunlight Aging – Excellent
Low Temperature
– Excellent |
General
Temperature Rating |
-40°F to 158°F |
Material |
G.P 70 Durometer
EPDM, Black, dense EPDM rubber to meet ASTM
D2000 M2BA710 C12, EA14, F17, Z1,
Z2, Z3; Z1= Comp. Set 22 hrs. @ 100 C, 30% max., Z2= Non-blooming, Z3= 73 +/- 3 (uncured)
shore A.
Must be capable to meet EPDM per SAE J200BC715 C12 C 20. |
Hardness |
70+/-
3 |
Elongation |
200 (250 according to D2000) |
Tensile
|
1450 PSI min. |
To view our entire catalog of products, download a copy or request a FREE copy be mailed to you, please click here: CATALOG


How to Install a Rubber Window Gasket
Watch the video below to learn how to properly install your gasket window seal.
Part # |
Glass Panel Thickness |
Body Panel Thickness |
Min Reccomended Clearance Between Glass & Edge |
Overall Height |
Min Reccomended Radius
of Panel Opening |
Weight per Foot
|
LK1522 |
0.1875" - .250" |
0.035" -
0.067" |
0.3125" |
1.07" |
2.5" |
0.275 lbs. |
LK1663 |
0.1875" -
.250" |
0.09" - 0.14" |
0.25" |
0.9" |
1.5" |
0.196 lbs. |
LK987 |
0.1875" - .250" |
0.09" - 0.14" |
0.3125" |
1.07" |
2.5" |
0.246
lbs. |
LK1536 |
0.1875" - .250" |
0.1875" -
0.25" |
0.406" |
1.09" |
3.5" |
0.255 lbs. |
LK1615 |
0.1875" -
.250" |
0.06" - 0.09" |
0.3125" |
0.906" |
2.5" |
0.275 lbs. |
LK1621 |
0.1875" -
.250" |
0.046" - 0.075" |
0.125" |
0.937" |
2.0" |
0.260 lbs. |
LK1660 |
0.1875" -
.250" |
0.075" - 0.140" |
0.145" |
1.00" |
2.0" |
0.293 lbs. |
