 3M™ BONDED TAPE SYSTEM The ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and air tight seal between rubber and substrate. Highest peel and shear resistance, can be used under high loads of stress and force. Has low intial tack for easy re-postioning during installation and needs 72 hours of cure time to come to full bond strength. Good heat performance -20F to +158F
3M™ Heat-Activated Acrylic Foam and Acrylic
Plus Tape
|
 |
 STANDARD PRESSURE SENSITIVE ADHESIVE This acrylic based adhesive is best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance -20F to +158F.
|
 |
| Description |

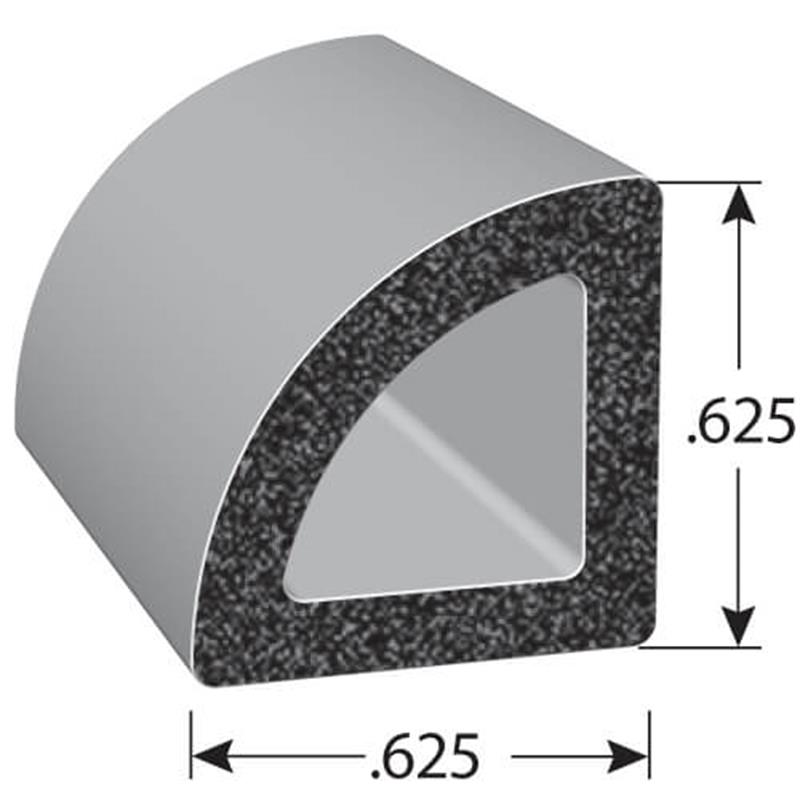

Rubber Seals come in a variety of specially designed shapes made
from custom formulated EPDM sponge rubber compound. |
| Resistance to |
- Ozone – Excellent
- Water Absorption - Excellent
- Sunlight Aging - Excellent
- Low Temperature – Excellent
- Compression Set - Good
|
| General Temp. Rating |
-20 Degrees to +158 Degrees |
| Compression Rating |
Recommended 25% compression for the maximum performance. |
| Flammability and Code Compliance |
FMVSS 302 (Right Click and Select Save As)
UL50 (Right Click and Select Save As) |
 |
This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements. |
| Adhesive Options |
- "BT" Pressure Sensitive Adhesive This 3M Acrylic Automotive grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and airtight seal
between rubber and substrate. Highest peel and shear resistance can be used under high loads of stress and force. Has low initial tack for easy re-positioning during installation and needs 72 hours of
cure time to come to full bond strength. Good heat performance -20F to +158F.
- "HT" Pressure Sensitive Adhesive This acrylic based adhesive is best used to hold the rubber seal
in place while installing it in a static application or compressed between two stationary objects. May be
used in some light duty dynamic applications against a variety of substrates. Good heat performance - 20F to +158F. Please note during application ambient temperature must be above +60F.
|
Rubber Seal Spec Sheet (Click to Open)
|
