1153 Series D-Shaped Sponge Rubber Seal

Home  »  Rubber Extrusions and Rubber Seals  »  EPDM Rubber Seals and Gaskets  »  D-Shaped Rubber Seals  »  1153 Series D-Shaped Sponge Rubber Seal

Customize Your Product:

About This D-Shaped Weather Stripping

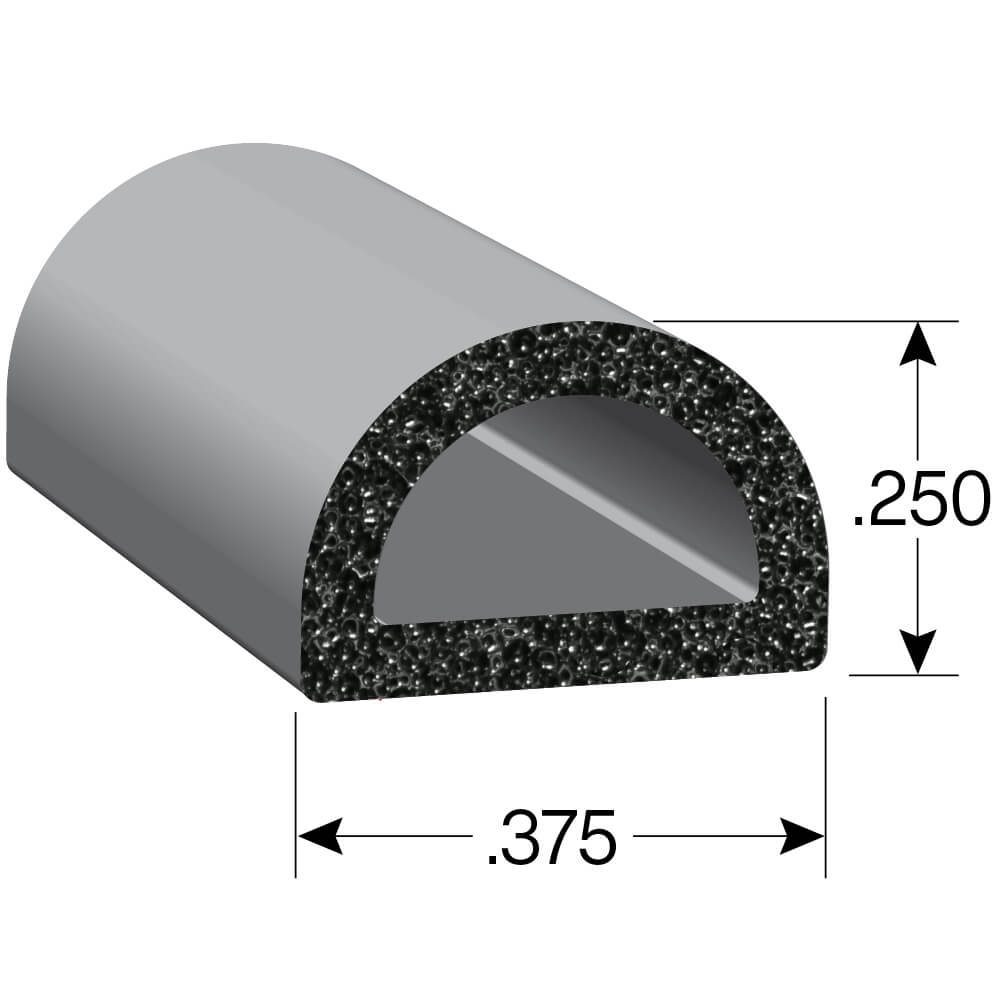

This D-shaped sponge rubber seal, measuring .375" (w) by .250" (h), creates a moisture barrier, as well as a water-tight and air-tight seal between your substrate and the rubber. It seals out air leaks, moisture, dirt and debris. D-shaped weather stripping also reduces vibration and helps to cancel some noise.

You can use these D-shaped EPDM sponge rubber seals between a variety of two substrates that have even or uneven gaps, such as:

  • • Doors (house, garage, auto, RV
  • Car trunks
  • Windows
  • Hatches
  • Electrical enclosures
  • Coolers
  • Lids
  • And more

When you’re choosing between D-shaped sponge rubber seal sizes, choose the one that will provide 25-40% compression for your application. This will give you optimal seal performance, especially at 25% compression. Review the specs, adhesive, installation details, and more for this EPDM D-shaped rubber seal below.

Tape Options (1153) *

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: Build Your Part for Pricing

3M™ BONDED TAPE SYSTEM

The BT option for your self-adhesive rubber seal provides the ultimate bond to the rubber and the ultimate bond to the substrate. With 3M, D-shaped rubber seals can create a moisture barrier and air-tight seal. With the highest peel and sheer resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance between-20°F to 158°F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape Application Guidelines

STANDARD PRESSURE SENSITIVE ADHESIVE

The HT option for your D-shaped EPDM sponge rubber seal is an acrylic-based adhesive. It works best when used to hold the half-round rubber seal in place while installing in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F.
Description

Trim-Lok EPDM Rubber Seals come in a variety of specially designed shapes, and are available in black with an HT standard pressure-sensitive adhesive or BT 3M bonded tape system.

We are proud to offer a .250” (h) x .375” (w) D-shaped weather stripping that can be used as a self-adhesive door seal, or a seal for vehicle trunks, windows, electrical enclosures, boat hatches, and many other applications.

Resistance to
  • Ozone – Excellent
  • Water Absorption – Excellent
  • Sunlight Aging - Excellent
  • Low Temperature – Excellent
  • Compression Set – Good
General Temp. Rating -20°F to 158°F
Compression Rating Recommended 25% compression for the maximum performance. It has a density of 21 to 23 lbs./pcf
Flammability and Code Compliance Download Test Data Sheet: FMVSS 302
Download Test Data Sheet: UL50
This component or material is recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options
  • "BT" Pressure-Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
  • "HT" Pressure-Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from -20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
View the Rubber Seal Spec Sheet

Part Number Top Bend Radius Inside Bend Radius Outside Bend Radius
X1153HT 2.00" 2.00" 2.00"

How to Install a Rubber Seal

Find out how to install our D-shaped sponge rubber seal by downloading our installation instruction PDF. Watch the video now to see a demonstration.

Rubber Seal Installation Instructions.pdf

Browse our entire catalog of rubber seals here (via PDF download), or order a FREE catalog here.

From Trim-Lok catalog, this is page 30 of the D-shaped EPDM sponge rubber seal, 109 series

From Trim-Lok catalog, this is page 31 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 32 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 33 of the triangle sections and adhesive options

From Trim-Lok catalog, this is page 34 of the rubber seal P types and sizes, lid seals, fender flare trims, and additional profiles

From Trim-Lok catalog, this is page 35 of the rubber seal ribbed sections and flap sections with sizes

From Trim-Lok catalog, this is page 36 of the rubber seal corner guard, splice cord & welting, and tubing and cord sizes
