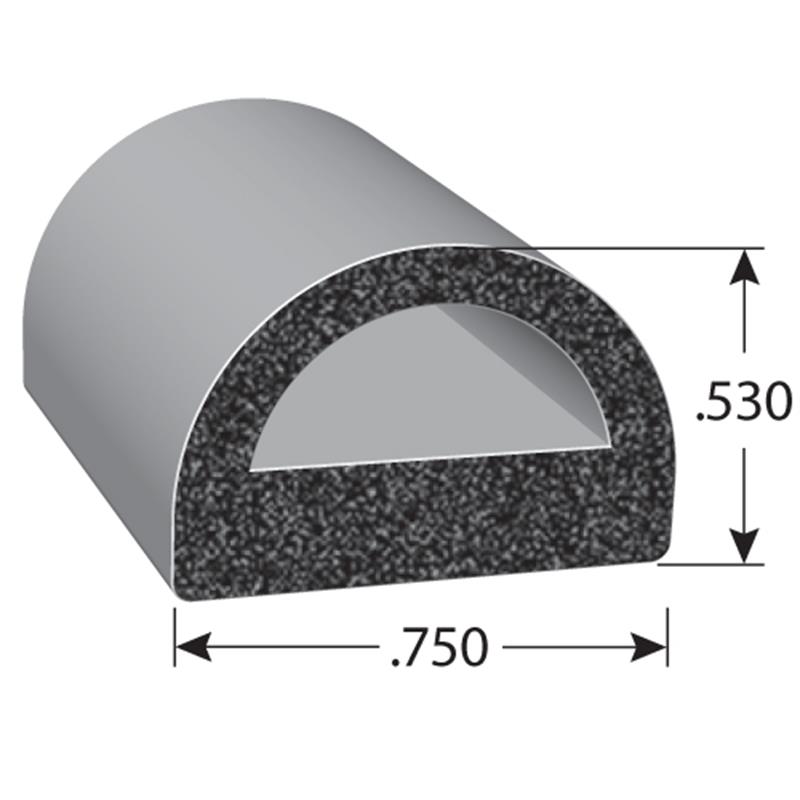

125 Series D-Shaped Rubber Seal

Additional Information

• Tape Defenitions
• Installation Video and PDF
• Min Bend Radius
• Specs and Options
• Catalog

3M™ BONDED TAPE SYSTEM  The ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and air tight seal between rubber and substrate. Highest peel and shear resistance, can be used under high loads of stress and force. Has low intial tack for easy re-postioning during installation and needs 72 hours of cure time to come to full bond strength. Good heat performance -20F to +158F 3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

STANDARD PRESSURE SENSITIVE ADHESIVE This acrylic based adhesive is best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance -20F to +158F.

Rubber Seal Installation Instructions.pdf

Part Number	Top Bend Radius	Inside Bend Radius	Outside Bend Radius
X125BT	2.50"	2.50"	3.50"
OW125HT	2.50"	2.50"	3.50"

Description	Rubber Seals come in a variety of specially designed shapes made from custom formulated EPDM sponge rubber compound.
Resistance to	Ozone – Excellent Water Absorption - Excellent Sunlight Aging - Excellent Low Temperature – Excellent Compression Set - Good
General Temp. Rating	-20 Degrees to +158 Degrees
Compression Rating	Recommended 25% compression for the maximum performance.
Flammability and Code Compliance	FMVSS 302 (Right Click and Select Save As) UL50 (Right Click and Select Save As)
	This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options	"BT" Pressure Sensitive Adhesive This 3M Acrylic Automotive grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and airtight seal between rubber and substrate. Highest peel and shear resistance can be used under high loads of stress and force. Has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. Good heat performance -20F to +158F. "HT" Pressure Sensitive Adhesive This acrylic based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance - 20F to +158F. Please note during application ambient temperature must be above +60F.
Rubber Seal Spec Sheet (Click to Open)

Browse our entire catalog of rubber seals here (via PDF download), or order a FREE catalog here.
