1678 Series D-Profile Rubber Seal

Home  »  Rubber Extrusion and Rubber Seals  »  EPDM Rubber Seals and Gaskets  »  D-Shape Rubber Seals  »  1678 Series D-Profile Rubber Seal

Customize Your Product:

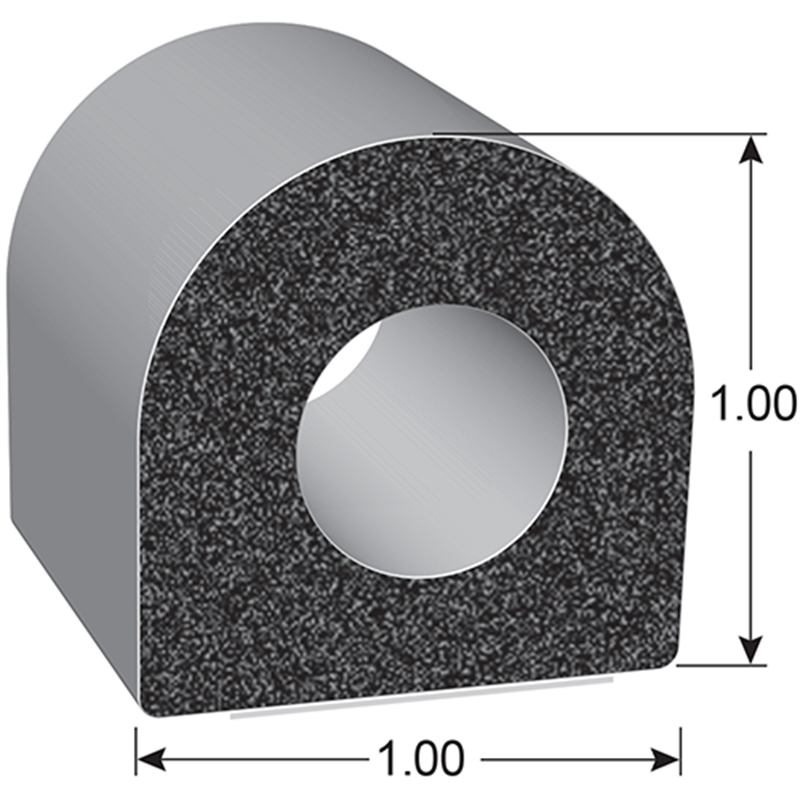

D-shaped EPDM Sponge Rubber Seal, with a height of 1.00" and a width of 1.00".





UL Recognized Component


Tape Options *

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: Build Your Part for Pricing

"BT" 3M™ BONDED TAPE SYSTEM

The ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and airtight seal between rubber and substrate. Highest peel and shear resistance, can be used under high loads of stress and force. Has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. Good heat performance -20F to 158F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

"HT" STANDARD PRESSURE SENSITIVE ADHESIVE

This acrylic based adhesive is best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance -20F to 158F.
Description Rubber Seals come in a variety of specially designed shapes made
from custom formulated EPDM sponge rubber compound.
Resistance to
  • Ozone – Excellent
  • Water Absorption - Excellent
  • Sunlight Aging - Excellent
  • Low Temperature – Excellent
  • Compression Set - Good
General Temp. Rating -20 Degrees to +158 Degrees
Compression Rating Recommended 25% compression for the maximum performance.
Flammability and Code Compliance FMVSS 302 (Right Click and Select Save As)
UL50 (Right Click and Select Save As)
This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options
  • "BT" Pressure Sensitive Adhesive This 3M Acrylic Automotive grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and airtight seal
    between rubber and substrate. Highest peel and shear resistance can be used under high loads of stress and force. Has low initial tack for easy re-positioning during installation and needs 72 hours of
    cure time to come to full bond strength. Good heat performance -20F to 158F.
  • "HT" Pressure Sensitive Adhesive This acrylic based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance - 20F to 158F. Please note during application ambient temperature must be above 60F.
Download Rubber Seal Spec Sheet
D-shaped rubber seals feature a top radius, inside radius and outside radius.
Part Number Top Bend Radius Inside Bend Radius Outside Bend Radius
X1678HT 2.50" 4.00" 2.50"

How to Install Trim-Lok Rubber Seals


Download Installation Instructions
