 3M™ BONDED TAPE SYSTEM The 3M Bonded Tape System enables you to achieve the ultimate bond to the rubber and the ultimate bond to the substrate. This tape option creates a moisture barrier and air-tight seal. With the highest peel-and-sheer resistance, the 3M Bonded Tape System can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full-bond strength. It is rated for good heat performance between -20°F to 158°F.
3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape Application Guidelines
|
 |
 STANDARD PRESSURE SENSITIVE ADHESIVEThe Standard Pressure-Sensitive Adhesive option for your seal is an acrylic-based adhesive. It works best when used to hold the seal in place while installing in a static application or when it’s compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F. Please note: During installation, the ambient temperature must be above 60°F.
|
 |
Specs & Specs & Options for Double Lip Seals
| Description |

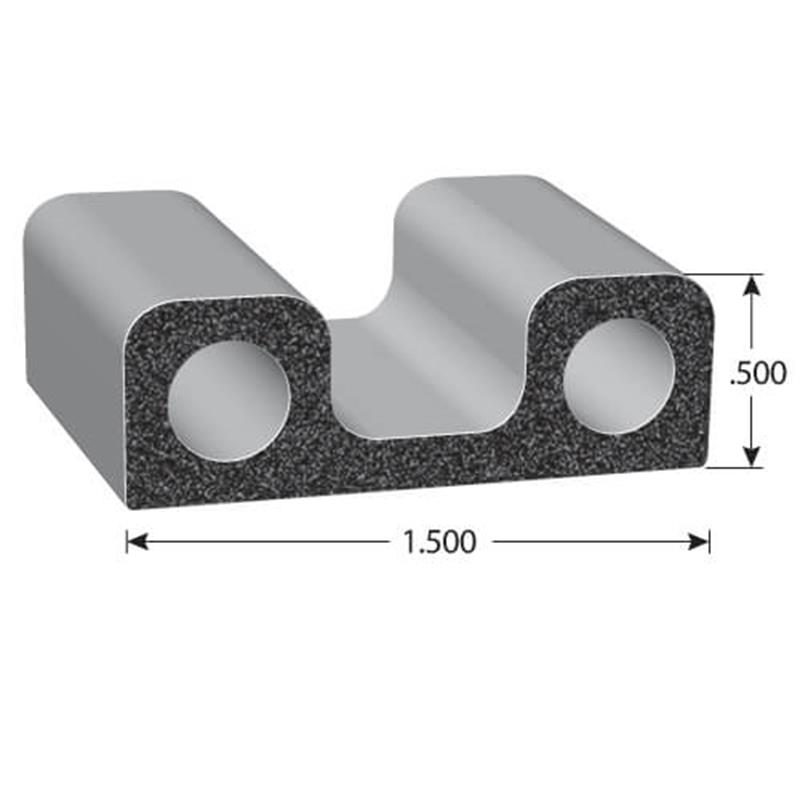

Trim-Lok Rubber Seals come in a variety of specially designed shapes made
from custom-formulated EPDM sponge rubber compound.
Why Trim-Lok Lid Seals?
Make sure you have the trims and EPDM rubber lid seals you need, when you need them. We offer our double-bulb seals at the lowest prices on the market and are available to talk through any questions you may have about how to apply your sponge seals to applications across a variety of industries, from automotive and marine to manufacturing and more.
|
| Resistance to |
- Ozone – Excellent
- Water Absorption – Excellent
- Sunlight Aging – Excellent
- Low Temperature – Excellent
- Compression Set – Good
|
| General Temp. Rating |
-20°F to 158°F |
| Compression Rating |
Recommended 25% compression for the maximum performance. |
| Flammability and Code Compliance |
Download FMVSS 302
Download UL50 |
 |
This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements. |
| Adhesive Options |
- "BT" Pressure Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
- "HT" Pressure Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from - 20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
|
| View Rubber Seal Spec Sheet |
How to Install Your Rubber Lid Seal
Watch the video to learn how to install your lid seal or download the rubber lid seal installation instructions now.
Browse our entire catalog of rubber seals here (via PDF download), or order a FREE catalog here.
