402 Series Double Bulb Seal

Product Details

About This Lid Seal

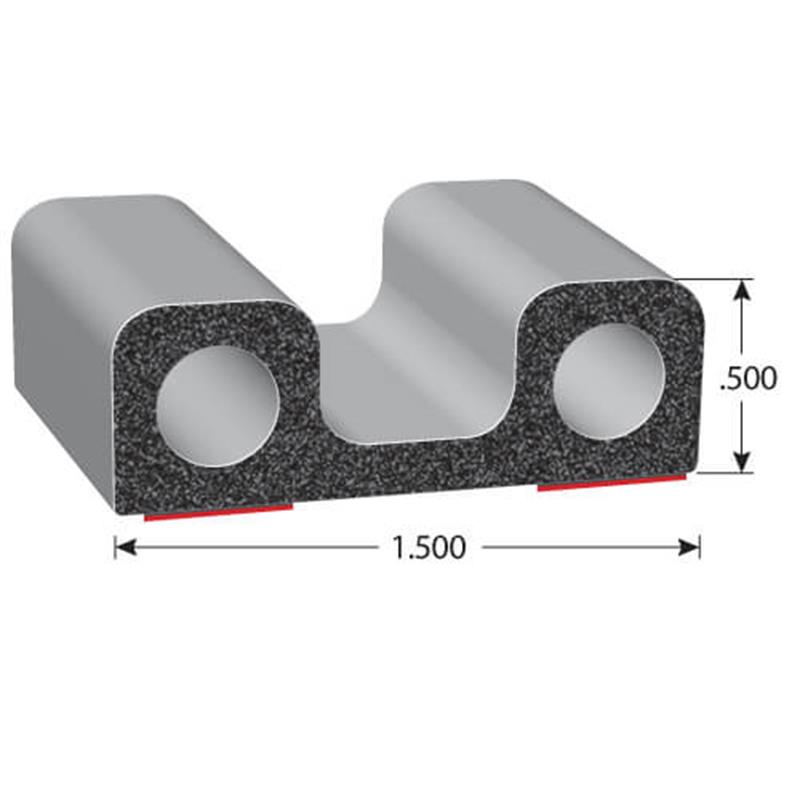

Rubber double-bulb seals consist of two flexible bulb-shaped profiles made of durable EPDM and sponge rubber materials. Our double bulb lid seal with EPDM sponge rubber has a height of .500" and a width of 1.500". Find out which adhesive to use with your EPDM bulb seal below so you can choose BT or HT when ordering.

Double-Lip Seal Applications

Our extruded double-bulb lid seals, gaskets, and weatherstrips are used in conjunction with each other to protect cargo and other areas of your vehicle or boat from:

  • Humidity
  • Water
  • Outdoor elements

When a truck cap or similar truck cover, these bulbs compress against the frame, creating a tight seal. This dual-seal design enhances insulation, minimizing air and moisture infiltration, thus improving energy efficiency and preventing drafts.

Industries That Use Rubber Lid Seals

OEMs across a variety of industries choose Trim-Lok for double-bulb seals.

To learn more about our tape definitions, explore the tab below. Visit our Design Guide or for help selecting the right adhesive.




UL Recognized Component

Additional Information

3M™ BONDED TAPE SYSTEM

The 3M Bonded Tape System enables you to achieve the ultimate bond to the rubber and the ultimate bond to the substrate. This tape option creates a moisture barrier and air-tight seal. With the highest peel-and-sheer resistance, the 3M Bonded Tape System can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full-bond strength. It is rated for good heat performance between -20°F to 158°F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape Application Guidelines

STANDARD PRESSURE SENSITIVE ADHESIVE

The Standard Pressure-Sensitive Adhesive option for your seal is an acrylic-based adhesive. It works best when used to hold the seal in place while installing in a static application or when it’s compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F. Please note: During installation, the ambient temperature must be above 60°F.

Specs & Specs & Options for Double Lip Seals

Description

Trim-Lok Rubber Seals come in a variety of specially designed shapes made
from custom-formulated EPDM sponge rubber compound.

Why Trim-Lok Lid Seals?

Make sure you have the trims and EPDM rubber lid seals you need, when you need them. We offer our double-bulb seals at the lowest prices on the market and are available to talk through any questions you may have about how to apply your sponge seals to applications across a variety of industries, from automotive and marine to manufacturing and more.
Resistance to
  • Ozone – Excellent
  • Water Absorption – Excellent
  • Sunlight Aging – Excellent
  • Low Temperature – Excellent
  • Compression Set – Good
General Temp. Rating -20°F to 158°F
Compression Rating Recommended 25% compression for the maximum performance.
Flammability and Code Compliance Download FMVSS 302
Download UL50
This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options
  • "BT" Pressure Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
  • "HT" Pressure Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from - 20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
View Rubber Seal Spec Sheet

How to Install Your Rubber Lid Seal


Watch the video to learn how to install your lid seal or download the rubber lid seal installation instructions now.


To view our entire catalog of PVC edge trim, rubber seals and other trim products, request a FREE copy by mail or download a copy now.

From Trim-Lok catalog, this is page 30 of the D-shaped EPDM sponge rubber seal, 109 series

From Trim-Lok catalog, this is page 31 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 32 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 33 of the triangle sections and adhesive options

From Trim-Lok catalog, this is page 34 of the rubber seal P types and sizes, lid seals, fender flare trims, and additional profiles

From Trim-Lok catalog, this is page 35 of the rubber seal ribbed sections and flap sections with sizes

From Trim-Lok catalog, this is page 36 of the rubber seal corner guard, splice cord & welting, and tubing and cord sizes

Buy 402 Series Double Bulb Seal

Tape Options (402) *
Color Options (402HT) *
X402HT *
Optional Customer Part Number (X402HT)
Part Number:
X402HT
Price:
$350.50
  • Buy 4 or more and pay $293.75 each (save $56.75 each)
  • Buy 20 or more and pay $250.50 each (save $100.00 each)

*Price breaks, where applicable, will be reflected in cart*

For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Please note that orders shipping outside of the USA and Canada cannot be processed online. To place an order for international shipping, please contact Trim-Lok at 888-874-6565.

Quantity:
Add To Cart
