2452 Series P-Shaped Rubber Seal

Home  »  Rubber Extrusion and Rubber Seals  »  EPDM Rubber Seals  »  P-Profile  »  2452 Series P-Shaped Rubber Seal

Customize Your Product:

About This P-Profile Rubber Seal

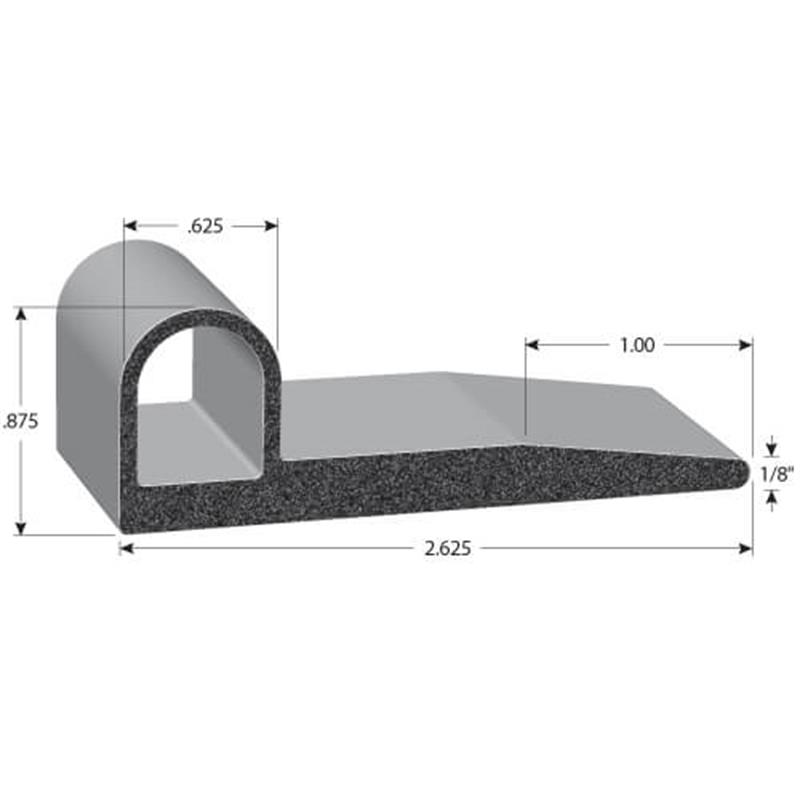

P-shaped rubber seal measuring .875" (h) by 2.625" (w).

Use our EPDM P-profile rubber seal to reduce heat loss, eliminate drafts, seal door frames, and more. Choose from no tape or BT 3M bonded tape to adhere your P-rubber seal to a substrate. Learn more in the Tape Definitions tab below.

Tape Options (2452) * What's This?

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: Build Your Part for Pricing
3M™ BONDED TAPE SYSTEM
The BT option for your self-adhesive rubber seal provides the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and air-tight seal. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance between -20°F to 158°F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

Ribbed seal series 2452 BT tape diagram=
STANDARD PRESSURE-SENSITIVE ADHESIVE
The HT option for your D-shaped EPDM sponge rubber seal is an acrylic-based adhesive. It works best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F.
Ribbed seal series 2452 HT tape diagram=
Description Trim-Lok’s Series 2452 P-Shaped Rubber Seals is made from custom-formulated EPDM sponge rubber compound.

Custom order your .875" x 2.625” EPDM P-profile rubber seal without adhesive or with 3M tape to meet a variety of needs and applications—from hatch seals, door seals, piping between the panels on cars and trucks, and more.

We are proud to provide you with P-profile rubber seals at the lowest prices on the market. Trim-Lok serves the manufacturing, automotive and marine industries with the quality rubber trim profiles you’ve come to expect.

Resistance to
  • Ozone – Excellent
  • Water Absorption – Excellent
  • Sunlight Aging – Excellent
  • Low Temperature – Excellent
  • Compression Set – Good
General Temp. Rating -20°F to 158°F
Compression Rating Recommended 25% compression for maximum performance.
Flammability and Code Compliance Download the PDF: FMVSS 302 (Right Click and Select Save As)
Download the PDF: UL50 (Right Click and Select Save As)
UL requirements logo for EPDM sponge rubber seals This (component or material) is recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Compression Rating It has density of 21 to 23 lbs./pcf
Adhesive Options
  • "BT" Pressure-Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
  • "HT" Pressure Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from -20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
View the EPDM Sponge Rubber Seal Spec Sheet

Find out how to install our EPDM P-rubber seal by downloading our Rubber Seal Installation Instructions.pdf. Watch the video now to see a demonstration.
