103 SERIES: RIBBED RUBBER SEAL, SELF-ADHESIVE WEATHER STRIPPING

Home  »  Rubber Extrusion and Rubber Seals  »  EPDM Rubber Seals  »  Ribbed & Square Profiles  »  103 SERIES: RIBBED RUBBER SEAL, SELF-ADHESIVE WEATHER STRIPPING

Customize Your Product:

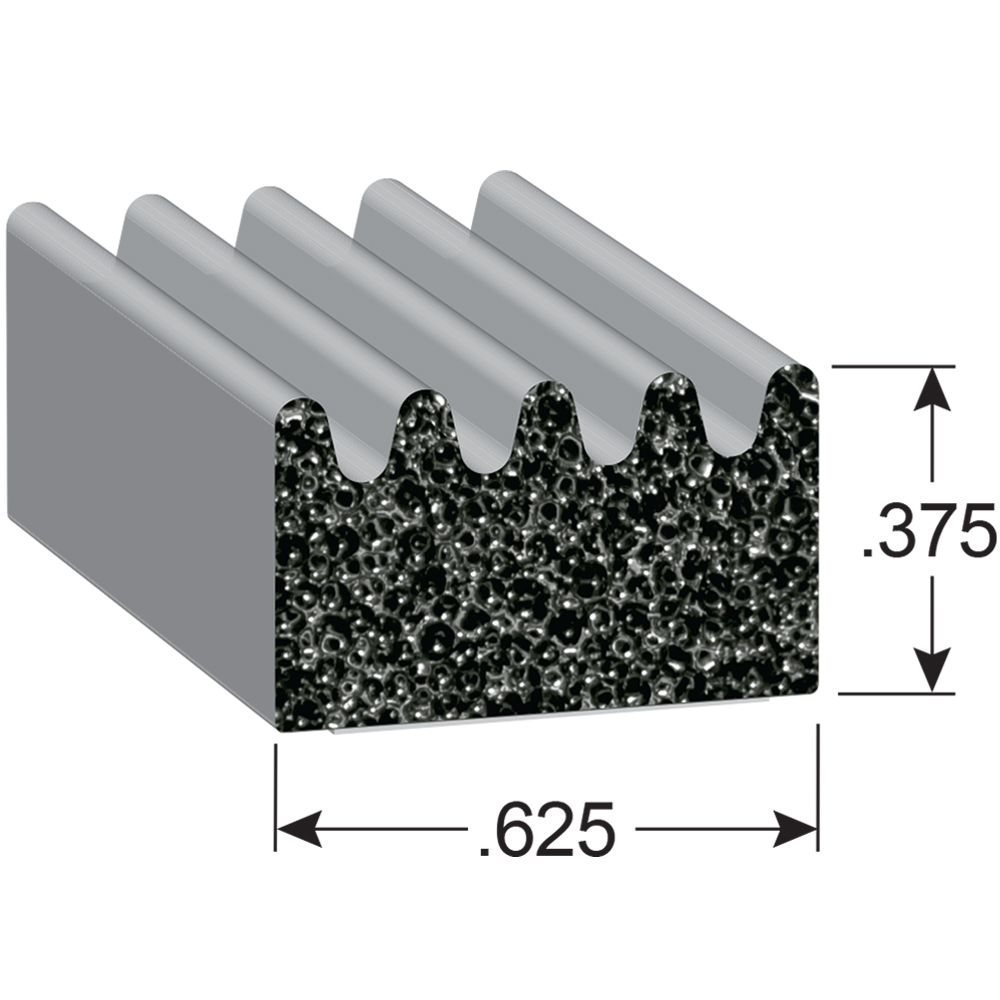

This ribbed-style EPDM sponge rubber seal has a height of .375" and a width of .625". Our ribbed seal is made from a custom-formulated EPDM sponge rubber that protects against extreme weather, drowns out noise, and eliminates vibration.

Trim-Lok ribbed seals create a watertight seal and a finished edge. Rubber profiles are the best choice for sealing and can be used in the automotive, construction, and marine industries in addition to being used as self-adhesive door seals and furniture edgings.

We manufacture this rubber seal with two tape options: BT tape and HT tape. Choose the adhesive that will work best for your situation in the drop-down menu on the right. If you don’t require a self-adhesive rubber seal, choose “no tape.”

Looking for something else? View our full line of EPDM ribbed-profile, self-stick weather seals and rubber seal products in our catalog below.

Tape Options *

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: Build Your Part for Pricing

Learn more about our self-adhesive rubber seals, door seals, and rubber seal options without HT or BT tape below or  download our catalog

Trim-Lok rubber seals catalog page 30

Trim-Lok D-shaped rubber seals catalog page 31Trim-Lok D-shaped rubber seals catalog page 32Trim-Lok self-adhesive rubber seals catalog page 33Trim-Lok P-shaped rubber seals catalog page 34Trim-Lok ribbed rubber seals catalog page 35Trim-Lok corner guard rubber seals catalog page 36

Logo for BT self-adhesive for rubber seals and trims3M™ BONDED TAPE SYSTEM
BT offers the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and air-tight seal between rubber and substrate. With the highest peel-and-shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to reach full-bond strength. It has good heat performance from -20F to +158F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

Diagram of rubber seal with BT tape
Logo for HT self-adhesive for rubber seals and trimsSTANDARD PRESSURE-SENSITIVE ADHESIVE
This acrylic-based adhesive is ideal for holding the rubber seal in place while installing in a static application or compressing between two stationary objects. It may be used in some light-duty, dynamic applications against a variety of substrates. It has good heat performance from -20F to +158F.
Diagram of rubber seal with HT tape
Description Rubber seals come in a variety of specially designed shapes made
from custom-formulated EPDM sponge rubber compound.
Resistance to
  • Ozone – Excellent
  • Water Absorption - Excellent
  • Sunlight Aging - Excellent
  • Low Temperature – Excellent
  • Compression Set - Good
General Temp. Rating -20 Degrees to +158 Degrees
Compression Rating Recommended 25% compression for the maximum performance.
Flammability and Code Compliance FMVSS 302 (Right Click and Select Save As)
UL50 (Right Click and Select Save As)
This (component or material) is recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options
  • "BT" Pressure-Sensitive Adhesive: This 3M acrylic automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and air-tight seal between rubber and substrate. With the highest peel-and-shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to reach full-bond strength. It has good heat performance from -20F to +158F.
  • "HT" Pressure-Sensitive Adhesive: This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressing between two stationary objects. It may be used in some light-duty, dynamic applications against a variety of substrates. It has good heat performance from - 20F to +158F. Please note: During application, keep ambient temperature above +60F.
Rubber Seal Spec Sheet (Click to Open)

Learn more about our X103BT ribbed self-adhesive rubber seal in the figure below, including top radius, outside radius, and inside radius measurements.

Radii for self-adhesive weather-stripping rubber seal
Part Number Top Bend Radius Inside Bend Radius Outside Bend Radius
X103BT 3.00" 3.50" 1.00"
X103HT 3.00" 3.50" 1.00"

Watch the video to learn how to measure for, order, and correctly install your ribbed seal. View an installation demonstration at 03:40.

Follow these simple, step-by-step installation recommendations to accurately secure your rubber seals.

Rubber Seal Installation Instructions.pdf
