Learn How to Measure and Install Locking Gaskets
| Description |
Locking Gasket
is a rubber extrusion designed to lock in the installation of stationary windows or
windshields. Locking gaskets provide a secure
seal between a metal or fiberglass
body panel and a glass or plexiglass
window. Available in one piece and two
piece styles with a lock strip, and are highly resistant to numerous environmental
conditions. |
| Resistance
to |
Ozone – Excellent
Water Absorption –
Excellent
Sunlight Aging – Excellent
Low Temperature
– Excellent |
| General
Temperature Rating |
-30 Degrees to +158 Degrees |
| Material |
G.P 70 Durometer
EPDM, Black, dense EPDM rubber to meet ASTM
D2000 M2BA710 C12, EA14, F17, Z1,
Z2, Z3; Z1= Comp. Set 22 hrs. @ 100 C, 30% max., Z2= Non-blooming, Z3= 73 +/- 3 (uncured)
shore A.
Must be capable to meet EPDM per SAE J200BC715 C12 C 20. |
| Hardness |
70+/-
3 |
| Elongation |
200 (250 according to D2000) |
|
Tensile
|
1450 PSI min. |

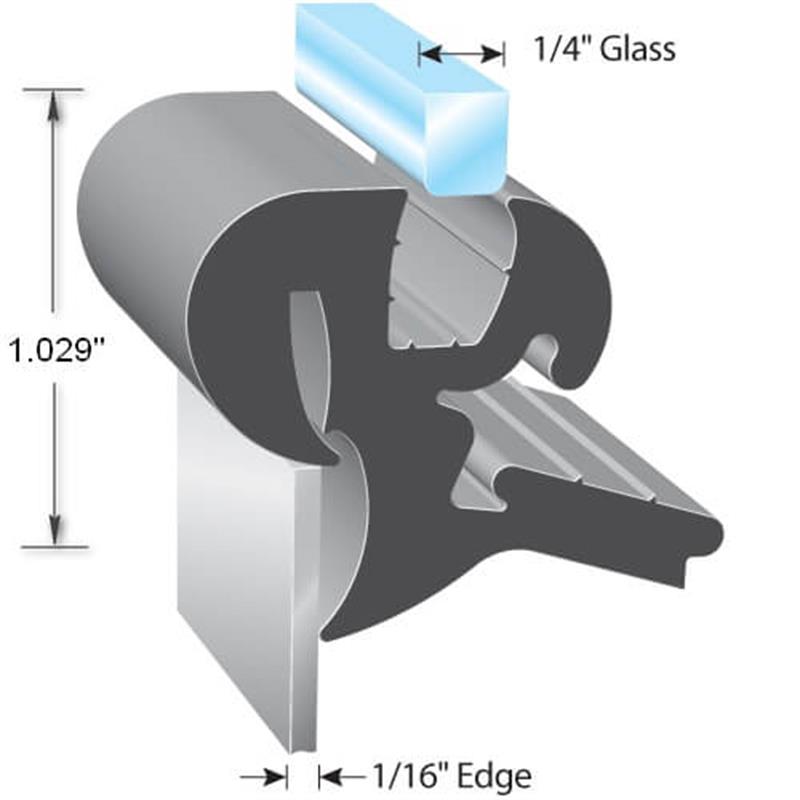

| Part # |
Glass Panel Thickness |
Body Panel Thickness |
Min Reccomended Clearance Between Glass & Edge |
Overall Height |
Min Reccomended Radius
of Panel Opening |
Weight per Foot
|
| LK1522 |
0.1875" - .250" |
0.035" -
0.067" |
0.3125" |
1.07" |
2.5" |
0.275 lbs. |
| LK1663 |
0.1875" -
.250" |
0.09" - 0.14" |
0.25" |
0.9" |
1.5" |
0.196 lbs. |
| LK987 |
0.1875" - .250" |
0.09" - 0.14" |
0.3125" |
1.07" |
2.5" |
0.246
lbs. |
| LK1536 |
0.1875" - .250" |
0.1875" -
0.25" |
0.406" |
1.09" |
3.5" |
0.255 lbs. |
| LK1615 |
0.1875" -
.250" |
0.06" - 0.09" |
0.3125" |
0.906" |
2.5" |
0.275 lbs. |

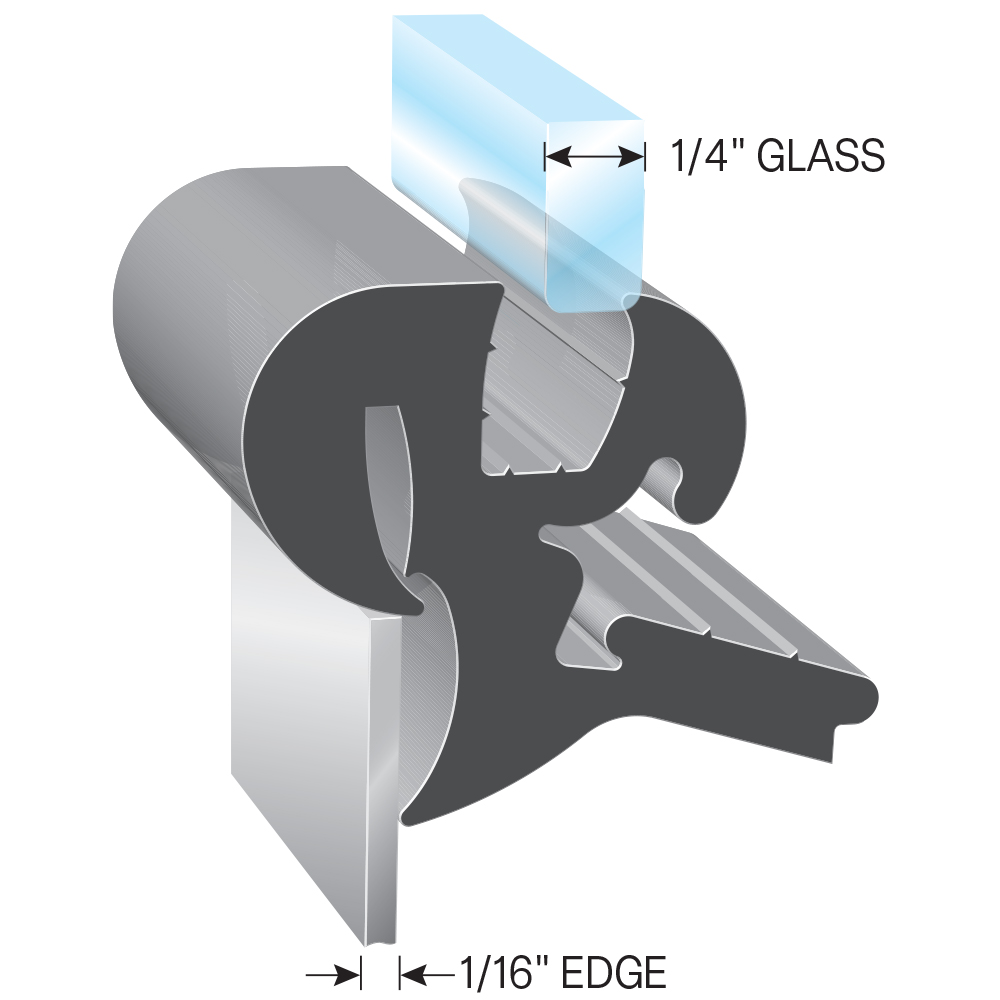

| LK1621 |
0.1875" -
.250" |
0.046" - 0.075" |
|
0.937" |
2.0" |
0.260 lbs. |
| LK1660 |
0.1875" -
.250" |
0.075" - 0.140" |
|
1.00" |
2.0" |
0.293 lbs. |
Locking Gasket Window Seal Industries
At Trim-Lok, our one-piece locking gasket helps OEMs across various industries to seal and protect against weather, dust, noise, vibration and more. No matter your industry, our locking window gasket seals can make all the difference:
