| Description |

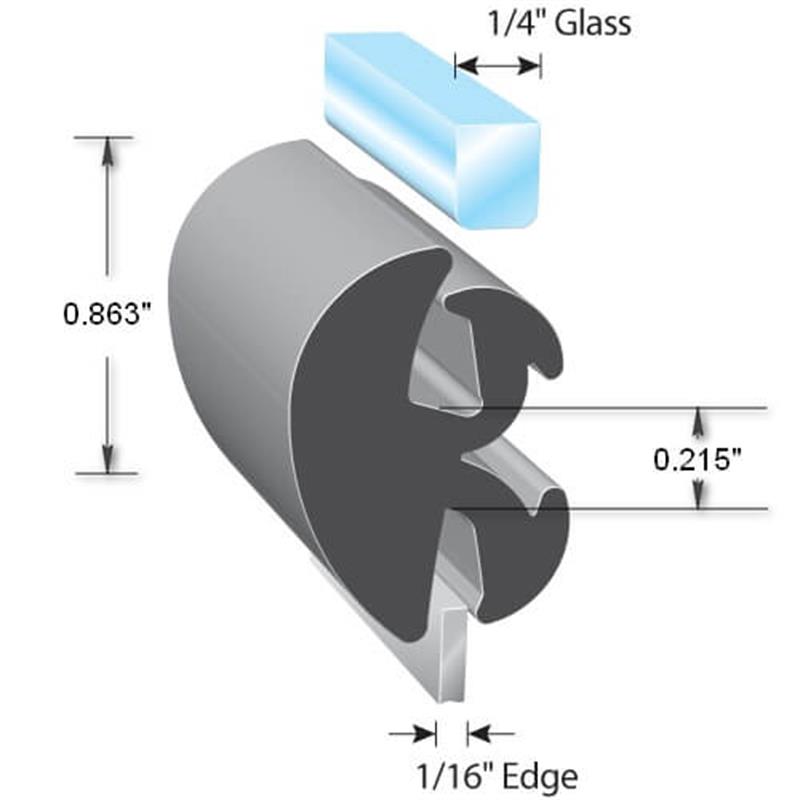

Locking Gasket
is a rubber extrusion designed to lock in the installation of stationary windows or
windshields. Locking gaskets provide a secure
seal between a metal or fiberglass
body panel and a glass or plexiglass
window. Available in one piece and two
piece styles with a lock strip, and are highly resistant to numerous environmental
conditions. |
| Resistance
to |
Ozone – Excellent
Water Absorption –
Excellent
Sunlight Aging – Excellent
Low Temperature
– Excellent |
| General
Temperature Rating |
-40 Degrees to +212 Degrees |
| Base Material |
Dense EPDM Rubber, 70 Shore A Durometer
|
| Hardness |
70+/-
3 |
Material Callout
| ASTM D2000 M2BA710, A14, B13, C12, F17, P2, Z1, Z2 |
| Elongation |
200 (250 according to D2000) |
|
Tensile
|
1450 PSI min. |
Flammability & Code Compliance | FMVSS 302
|
To view our entire catalog of products, download a copy or request a FREE copy be mailed to you, please click here: CATALOG
| Part # |
Glass Panel Thickness |
Body Panel Thickness |
Min Reccomended Clearance Between Glass & Edge |
Overall Height |
Min Reccomended Radius
of Panel Opening |
Weight per Foot
|
| LK1522 |
0.1875" - .250" |
0.035" -
0.067" |
0.3125" |
1.07" |
2.5" |
0.275 lbs. |
| LK1663 |
0.1875" -
.250" |
0.09" - 0.14" |
0.25" |
0.9" |
1.5" |
0.196 lbs. |
| LK987 |
0.1875" - .250" |
0.09" - 0.14" |
0.3125" |
1.07" |
2.5" |
0.246
lbs. |
| LK1536 |
0.1875" - .250" |
0.1875" -
0.25" |
0.406" |
1.09" |
3.5" |
0.255 lbs. |
| LK1615 |
0.1875" -
.250" |
0.06" - 0.09" |
0.3125" |
0.906" |
2.5" |
0.275 lbs. |
| LK1621 |
0.1875" -
.250" |
0.046" - 0.075" |
0.125" |
0.937" |
2.0" |
0.260 lbs. |
| LK1660 |
0.1875" -
.250" |
0.075" - 0.140" |
0.145" |
1.00" |
2.0" |
0.293 lbs. |
