110 Series D-Shaped Rubber Seal

Product Details

About This EPDM Sponge Rubber Seal

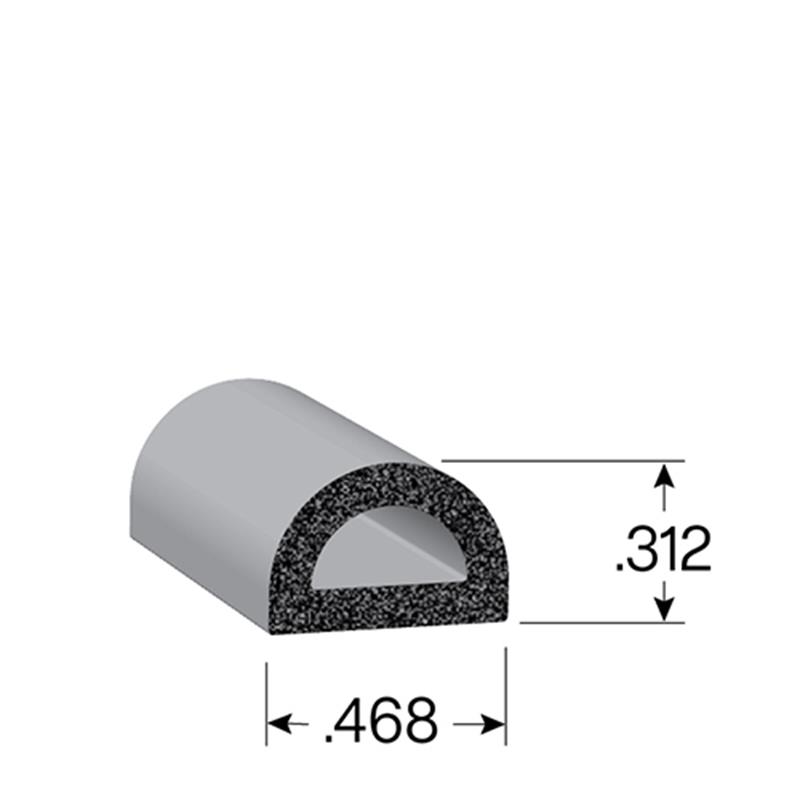

D-Shaped EPDM Sponge Rubber Seal, measuring .312" (h) by .468"(w).

Use this adhesive foam weather stripping to seal and protect your desired application or as a self-adhesive door seal. Seal windows and storage compartments where you need to reduce drafts, insulate, and reduce vibration or noise such as on automobiles, boats or RVs. Available without tape or choose from two adhesive options:

HT – Standard PSA

BT – 3M™ Bonded Tape System

UL Recognized Component

D-shaped EPDM Sponge Rubber Seal, with a height of .312" and a width of .468".

3M™ BONDED TAPE SYSTEM

The BT option for your self-adhesive rubber seal provides the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and air-tight seal. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance between -20°F to 158°F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

STANDARD PRESSURE-SENSITIVE ADHESIVE

The HT option for your D-shaped EPDM sponge rubber seal is an acrylic-based adhesive. It works best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F.

HT standard PSA rubber seal tape height=

View the EPDM Sponge Rubber Seal Spec Sheet (Click to Open)
Description	The Trim-Lok Series 110 D-Shaped is an adhesive foam weather stripping available in a specially designed shape made from custom-formulated EPDM sponge rubber compound. Custom order your .312" x .468” EPDM sponge rubber seal with HT standard pressure-sensitive adhesive, BT 3M tape, or no tape to meet a variety of needs and applications, including window seals, door seals and more. Our BT and HT color options include black and off-white. Our no-tape option is available in black. Choose from a single or dual roll depending on product type. Trim-Lok’s 110 series D-shaped rubber seals are available at the lowest prices on the market. We serve the marine, automotive manufacturing and many other industries with the highest quality adhesive foam weather stripping.
Resistance to	Ozone – Excellent Water Absorption – Excellent Sunlight Aging – Excellent Low Temperature – Excellent Compression Set – Good
General Temp. Rating	-20°F to 158°F
Compression Rating	Recommended 25% compression for the maximum performance.
Flammability and Code Compliance	Download a PDF: FMVSS 302 (Right Click and Select Save As) Download a PDF: UL50 (Right Click and Select Save As)
	This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options	"BT" Pressure-Sensitive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F. "HT" Pressure-Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from -20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
