2199 Series P-Shaped Rubber Seal

Product Details

About This P-Profile Rubber Seal

This Trim-Lok P-shaped Rubber Seal has a height of .500" and a width of 1.250". It provides the ultimate bond between the rubber and its substrate. Learn more about this P-seal gasket’s half-round shape, adhesive options, specs, installation and more below

P-Seal Gasket Applications

P-shaped rubber seals can be used in a variety of industries and applications, particularly for sealing and to create a water-tight seal for:

Door frames
Hinged windows
Hatch seals
Piping between panels on cars and trucks
And more

Benefits of P-Shaped Rubber Seals

Our extruded rubber P-seals can be used indoors, outdoors, and in extreme temperatures and weather conditions. Rubber P-seals also:

Create a water-tight seal
Resist ozone
Resist UV light
Reduce heat loss
Prevent drafts

Compression & Tape Systems

As you select the right seal for your application, choose the size that will provide 25-40% compression for maximum performance, with 25% being optimal. You can also choose between a 3M bonded tape system or standard pressure sensitive adhesive, which you can learn about below.

Why Trim-Lok?

We use the highest quality materials to produce our rubber P-seals, which is expertly designed by our team of highly skilled product engineers and made in America. For more information about P-profile rubber seals or custom solutions, contact a local sales representative today.

UL Recognized Component

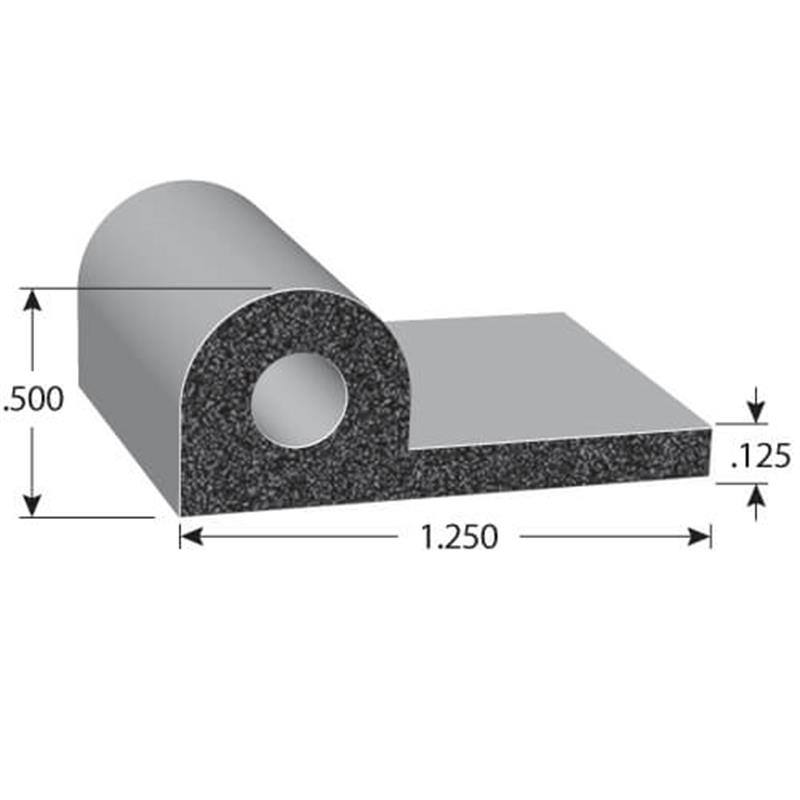

P-Shape Rubber Seal with BT or HT adhesive tape option illustrated image with dimensions

P-Shape Rubber Seal with BT or HT adhesive tape option illustrated image with dimensions Tape Location B

P-Shape Rubber Seal with BT or HT adhesive tape option illustrated image with dimensions Tape Location A

P-Shape Rubber Seal with BT or HT adhesive tape option

3M™ BONDED TAPE SYSTEM

The 3M Bonded Tape System enables you to achieve the ultimate bond to the rubber and the ultimate bond to the substrate. This tape option creates a moisture barrier and air-tight seal. With the highest peel-and-sheer resistance, the 3M Bonded Tape System can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full-bond strength. It is rated for good heat performance between -20°F to 158°F

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape Application Guidelines

STANDARD PRESSURE SENSITIVE ADHESIVE

Standard Pressure-Sensitive Adhesive option for your seal is an acrylic-based adhesive. It works best when used to hold the seal in place while installing in a static application or when it’s compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F. Please note: During installation, the ambient temperature must be above 60°F.

Specs for P Gaskets

View the Rubber Seal Spec Sheet
Description	Trim-Lok Rubber Seals come in a variety of specially designed shapes made from custom-formulated EPDM sponge rubber compound. This P-shaped rubber seal measures .500” x 1.250” and is designed to create the ultimate bond between rubber and substrate. OEMs across a variety of industries—manufacturing, automotive, marine, furniture, and more—use our P-seal gaskets to create a water-tight seal, while reducing noise, vibration, dirt and dust. They are most commonly used on door frames, hinged windows, and as piping between panels on cars. If your application requires a custom solution, Trim-Lok’s expert team of product engineers can help. Reach out to your local rep today to get started. Rubber Seals come in a variety of specially designed shapes made from custom formulated EPDM sponge rubber compound.
Resistance to	Ozone – Excellent Water Absorption – Excellent Sunlight Aging – Excellent Low Temperature – Excellent Compression Set – Good
General Temp. Rating	-20°F to +158°F
Compression Rating	25–40% compression recommended for your application, with 25% being optimal.
Flammability and Code Compliance	Download FMVSS 302 Download UL50
	This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options	"BT" Pressure Sensitive Adhesive This 3M Acrylic Automotive grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It also creates a moisture barrier and air-tight seal between the rubber and substrate. It offers the highest peel and shear resistance and can be used under high loads of stress and force. This adhesive has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full bond strength. It offers good heat performance from -20°F to 158°F. "HT" Pressure Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light duty dynamic applications against a variety of substrates. It offers good heat performance from -20°F to 158°F. Please note during application ambient temperature must be above 60°F.


Part Number	Top Bend Radius	Inside Bend Radius	Outside Bend Radius
X2199	NA	2.50"	1.00"
X2199BT	6.00"	2.50"	1.00"

How to Install P-Shaped Rubber Seals

Watch the installation demonstration as you prepare to install your EPDM sponge rubber seal with 3M or standard pressure-sensitive adhesive. Need more support? Download our installation instructions or contact a Trim-Lok rep.
