 3M™ BONDED TAPE SYSTEM The BT option for your self-adhesive rubber seal provides the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and air-tight seal. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance between -20°F to 158°F.
3M™ Heat-Activated Acrylic Foam and Acrylic
Plus Tape
|
 |
 STANDARD PRESSURE-SENSITIVE ADHESIVE The HT option for your D-shaped EPDM sponge rubber seal is an acrylic-based adhesive. It works best when used to hold the rubber seal in place while installing in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F.
|
 |
| Description |
Trim-Lok’s Series 112 Ribbed Rubber Seals is made from custom-formulated EPDM sponge rubber compound.

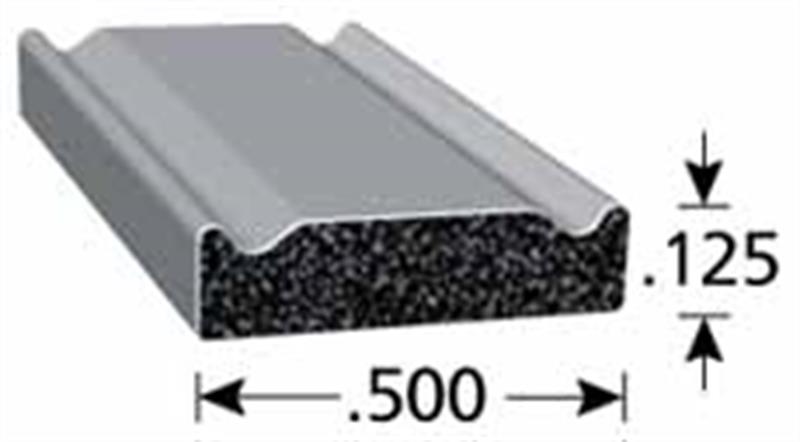

Custom order your .125" x .500” EPDM ribbed-profile self-stick rubber seal with HT standard PSA tape or BT 3M tape to meet a variety of needs and applications—from weather stripping and window seals to door seals and more
BT and HT color options are available in black. Choose from a dual or single roll type.
We are proud to provide you with 3M D-shaped rubber seals and self-adhesive door seals with HT standard PSA tape at the lowest prices available on the market. Trim-Lok serves the manufacturing, automotive and marine industries with the quality rubber trim profiles you’ve come to expect.
|
| Resistance to |
- Ozone – Excellent
- Water Absorption – Excellent
- Sunlight Aging – Excellent
- Low Temperature – Excellent
- Compression Set – Good
|
| General Temp. Rating |
-20°F to 158°F |
| Compression Rating |
Recommended 25% compression for maximum performance. |
| Flammability and Code Compliance |
Download the PDF: FMVSS 302 (Right Click and Select Save As)
Download the PDF: UL50 (Right Click and Select Save As) |
 |
This (component or material) is recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements. |
| Compression Rating and Density |
It has density of 21 to 23 lbs./pcf |
|---|
| Adhesive Options |
- "BT" Pressure-Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy re-positioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
- "HT" Pressure Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from -20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
|
View the EPDM Sponge Rubber Seal Spec Sheet
|
|
| Part Number |
Top Bend Radius |
Inside Bend Radius |
Outside Bend Radius |
| X112HT |
3.00" |
1.00" |
1.00" |
Find out how to install our self-adhesive rubber seal by downloading our Rubber Seal Installation Instructions.pdf. Watch the video now to see a demonstration.
