109 Series D-Shaped Foam Rubber Seal

Home  »  Rubber Extrusion and Rubber Seals  »  EPDM Rubber Seals and Gaskets  »  D-Shape Rubber Seals  »  109 Series D-Shaped Foam Rubber Seal

Customize Your Product:

About This Rubber Seal Strip

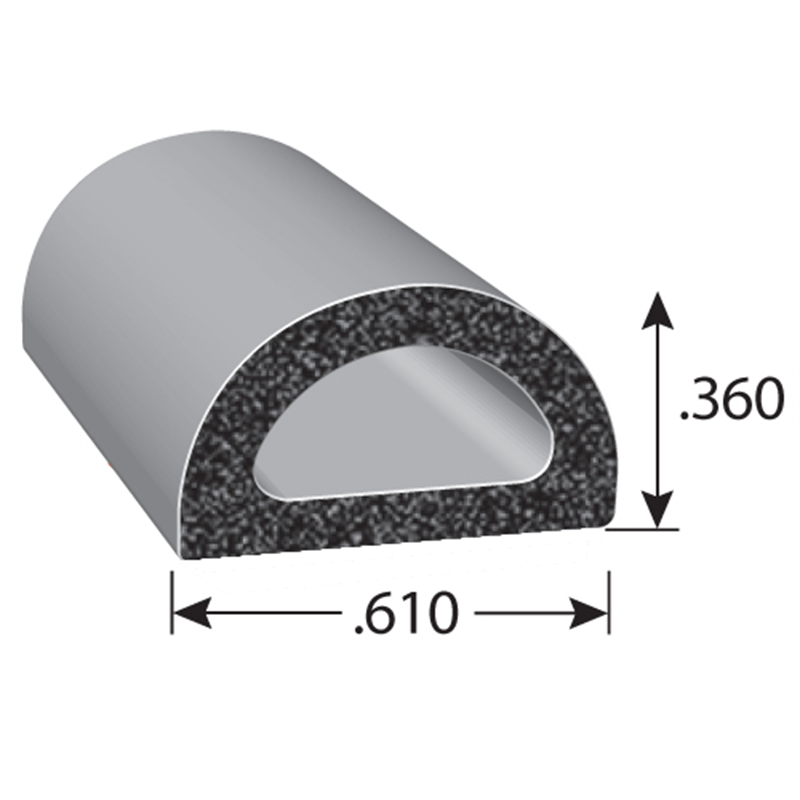

This D-shaped EPDM sponge rubber seal has a height of .360" and a width of .610". It can be used in weatherstripping for air leaks, moisture, and dirt and debris—in addition to the vibration reduction and some noise cancellation of D-shaped rubber seals.

Learn more about your adhesive options below.



D-Shaped Rubber Seal Applications

We recommend using EPDM D-shaped rubber seals on doors, car trunks, windows, hatches, electrical enclosures, coolers, and more. The series you choose should depend on the size of your substrate and gap. Ideally, your half-round rubber seal should provide 25-40% compression.

Looking for rubber seal stripping in a different height or width? Browse D-shaped rubber seals to find more options.




Tape Options * Tape Definitions

*Price breaks, where applicable, will be reflected in cart*


For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Price: Build Your Part for Pricing
3M™ BONDED TAPE SYSTEM
The ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and air tight seal between rubber and substrate. Highest peel and shear resistance, can be used under high loads of stress and force. Has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full bond strength. Good heat performance -20F to +158F

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape

3M™ Bonded Tape System
STANDARD PRESSURE SENSITIVE ADHESIVE
This acrylic based adhesive is best when used to hold the rubber seal strip in place while installing in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance -20F to 158F.
Standard pressure sensitive adhesive
Description Rubber Seals come in a variety of specially designed shapes made
from custom formulated EPDM sponge rubber compound.
Resistance to
  • Ozone – Excellent
  • Water Absorption - Excellent
  • Sunlight Aging - Excellent
  • Low Temperature – Excellent
  • Compression Set - Good
General Temp. Rating -20 Degrees to 158 Degrees
Compression Rating Recommended 25% compression for the maximum performance.
Flammability and Code Compliance Download FMVSS 302 Spec Sheet
Download UL50 Spec Sheet
This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Compression Rating and Density Recommended 25% compression for the maximum performance. It
has density of 21 to 23 lbs./pcf
Adhesive Options
  • "BT" Pressure Sensitive Adhesive This 3M Acrylic Automotive grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. Creates a moisture barrier and airtight seal
    between rubber and substrate. Highest peel and shear resistance can be used under high loads of stress and force. Has low initial tack for easy re-positioning during installation and needs 72 hours of
    cure time to come to full bond strength. Good heat performance -20F to 158F.
  • "HT" Pressure Sensitive Adhesive This acrylic based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. May be used in some light duty dynamic applications against a variety of substrates. Good heat performance - 20F to 158F. Please note during application ambient temperature must be above +60F.
Download Rubber Seal Spec Sheet
Graphic of D-shaped rubber seal design in various positions with radii
Part Number Top Bend Radius Inside Bend Radius Outside Bend Radius
X109BT 4.50" 3.50" 2.00"
OW109BT 4.50" 3.50" 2.00"

How to Install a Rubber Seal

Watch a short video with step-by-step instructions for how to install a D-shaped rubber seal, or download our instructional PDF.


Browse our entire catalog of rubber seals here (via PDF download), or order a FREE catalog here.

From Trim-Lok catalog, this is page 30 of the D-shaped EPDM sponge rubber seal, 109 series



From Trim-Lok catalog, this is page 31 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 32 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 33 of the triangle sections and adhesive options

From Trim-Lok catalog, this is page 34 of the rubber seal P types and sizes, lid seals, fender flare trims, and additional profiles

From Trim-Lok catalog, this is page 35 of the rubber seal ribbed sections and flap sections with sizes

From Trim-Lok catalog, this is page 36 of the rubber seal corner guard, splice cord & welting, and tubing and cord sizes
