1543 Series D-Shaped Rubber Seal

Product Details

About This D-Shaped Weatherstripping

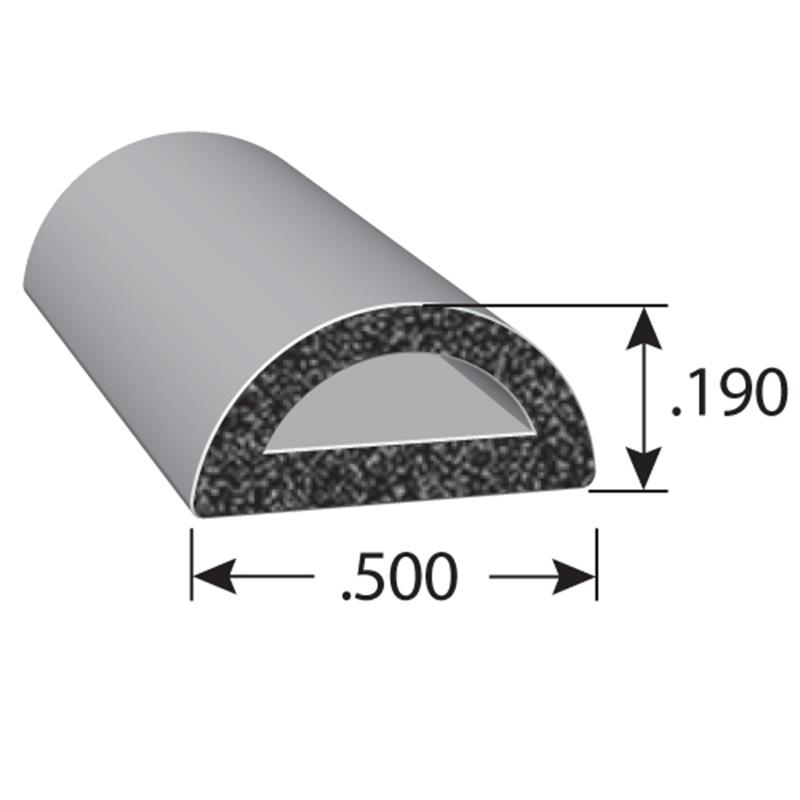

This D-shaped rubber seal has a height of .190" and a width of .500". It provides the ultimate bond between the rubber and its substrate. Learn more about this D-shaped EPDM sponge rubber seal’s half-round shape, adhesive, specs, installation and more below.

D-Shaped Gasket Applications

D-shaped weatherstripping can be used to seal out:

  • Creates a watertight seal
  • Air leaks
  • Moisture
  • Dirt and debris

Rubber weatherstripping also helps to reduce vibration and provides some noise cancellation. It’s recommended for use between two substrates such as:

  • Doors (house, garage, auto, RV, etc.)
  • Car trunks
  • Windows
  • Hatches
  • Electrical enclosures
  • Coolers
  • And more

Rubber Weatherstripping Compression

Where gaps may vary in size on doors and lids, a D-shaped gasket can fill, seal and protect. Remember to choose the half-round rubber seal that will provide 25–40% compression for your application, with 25% optimal for maximum performance.





UL Recognized Component

Additional Information

3M™ BONDED TAPE SYSTEM
The 3M Bonded Tape System enables you to achieve the ultimate bond to the rubber and the ultimate bond to the substrate. This tape option creates a moisture barrier and air-tight seal. With the highest peel-and-sheer resistance, the 3M Bonded Tape System can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full-bond strength. It is rated for good heat performance between -20°F to 158°F.

3M™ Heat-Activated Acrylic Foam and Acrylic Plus Tape Application Guidelines
STANDARD PRESSURE SENSITIVE ADHESIVE
The Standard Pressure-Sensitive Adhesive option for your seal is an acrylic-based adhesive. It works best when used to hold the seal in place while installing in a static application or when it’s compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance between -20°F to 158°F. Please note: During installation, the ambient temperature must be above 60°F.

Specs for Series 1543 D-Shaped Gaskets

Description Trim-Lok’s D-Shaped Rubber Seals (Series 1543) are specially designed
from custom-formulated EPDM sponge rubber compound.

D-shaped weatherstripping is ideal for numerous applications across a variety of industries, including automotive, marine, manufacturing and more.

As the leading manufacturer of plastic and rubber extrusions, Trim-Lok has been providing trim and seal engineering, custom solutions and services for over 50 years. We proudly make our products in America and use only the highest quality materials. Learn more about our custom capabilities.
Resistance to
  • Ozone – Excellent
  • Water Absorption – Excellent
  • Sunlight Aging – Excellent
  • Low Temperature – Excellent
  • Compression Set – Good
General Temp. Rating -20°F to 158°F
Compression Rating 25–40% compression recommended, with 25% compression for optimal performance.
Flammability and Code Compliance Download the PDF: FMVSS 302
Download the PDF: UL50
This (component or material) is Recognized by UL. Representative samples of this component have been evaluated by UL and meet applicable UL requirements.
Adhesive Options
  • "BT" Pressure Sensitive Adhesive This 3M acrylic, automotive-grade tape creates the ultimate bond to the rubber and the ultimate bond to the substrate. It creates a moisture barrier and airtight seal between rubber and substrate. With the highest peel and shear resistance, it can be used under high loads of stress and force. It has low initial tack for easy repositioning during installation and needs 72 hours of cure time to come to full bond strength. It is rated for good heat performance from -20°F to 158°F.
  • "HT" Pressure Sensitive Adhesive This acrylic-based adhesive is best used to hold the rubber seal in place while installing it in a static application or compressed between two stationary objects. It may be used in some light-duty dynamic applications against a variety of substrates. It is rated for good heat performance from -20°F to 158°F. Please note: During application, the ambient temperature must be above 60°F.
View Rubber Seal Spec Sheet

Part Number Top Bend Radius Inside Bend Radius Outside Bend Radius
X1543BT 4.50" 2.00" 1.00"

Installation Video and Instructions for D-Shaped Rubber Seals

Find out how to install our D-shaped rubber seal by downloading our installation instruction PDF. Watch the video now to see a demonstration.


Browse our entire catalog of rubber seals here (via PDF download), or order a FREE catalog here.

From Trim-Lok catalog, this is page 30 of the D-shaped EPDM sponge rubber seal, 109 series

From Trim-Lok catalog, this is page 31 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 32 of the rubber seal D types and sizes

From Trim-Lok catalog, this is page 33 of the triangle sections and adhesive options

From Trim-Lok catalog, this is page 34 of the rubber seal P types and sizes, lid seals, fender flare trims, and additional profiles

From Trim-Lok catalog, this is page 35 of the rubber seal ribbed sections and flap sections with sizes

From Trim-Lok catalog, this is page 36 of the rubber seal corner guard, splice cord & welting, and tubing and cord sizes

Buy 1543 Series D-Shaped Rubber Seal

Tape Options (1543) *
Price:
Build Your Part for Pricing

*Price breaks, where applicable, will be reflected in cart*

For volume pricing above 5,000 feet, please contact Trim-Lok at 888-874-6565

Please note that orders shipping outside of the USA and Canada cannot be processed online. To place an order for international shipping, please contact Trim-Lok at 888-874-6565.
